Description
OPERATING TEMPERATURE | -60℃ ~ 200℃ |

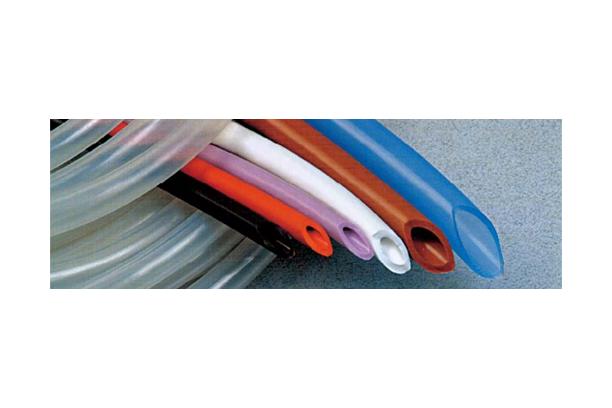

COLOR | Red, Blue, White, Gray, Green, Clear (White color is flame-retardant) |
RoHS Compliant | UL approved for food industry Good flexibility and arc resistance performance Non-poisonous |
TECHNICAL DATA
Property | Test Method | Test Data |
Dielectric strength (kV/mm) | IEC 243 | ≥18 |
Volume resistance (Ω,cm) | IEC 93 | ≥1X10¹⁴ |
Tensile Strength (Mpa) | ASTM D412 | ≥3.5Map |
Elongation (%) | ASTM D412 | ≥201 |
Flammability (White color only) | ISO 1210 | FV-1 |
STANDARD SIZE DIMENSIONS
Size(mm) | Internal Diameter(mm) | Average wall Thickness(mm) | Standard Package (M/Coil) | |||
2500V | 4000V | 6000V | 7000V | |||
8.0 | 0.8±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 200 |
1.0 | 1.0±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 200 |
1.5 | 1.5±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 200 |
2.0 | 2.0±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 100 |
2.5 | 2.5±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 100 |
3.0 | 3.0±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 100 |
3.5 | 3.5±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 100 |
4.0 | 4.0±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 100 |
4.5 | 4.5±0.10 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 100 |
5.0 | 5.0±0.20 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
5.5 | 5.5±0.20 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
6.0 | 6.0±0.20 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
6.5 | 6.5±0.20 | 0.5±0.10 | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
7.0 | 7.0±0.20 | / | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
7.5 | 7.5±0.20 | / | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
8.0 | 8.0±0.25 | / | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
9.0 | 9.0±0.25 | / | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 25 |
10.0 | 10.0±0.25 | / | 1.0±0.15 | 1.5±0.20 | 2.0±0.25 | 50 |
