product Image

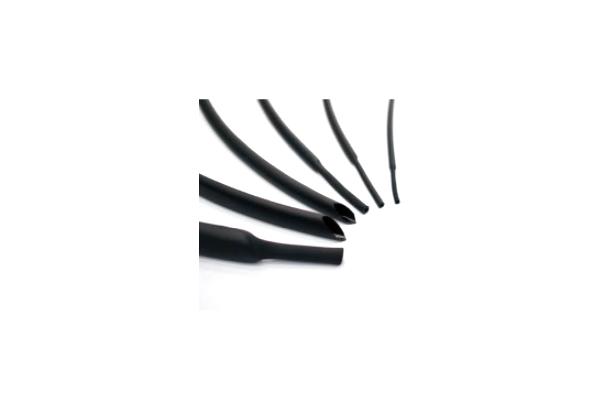

Dual Wall Tubing
Model Name
-
Series
Dual Wall Tubing
View All
Data
-
Manufacturer information
provider logo
DAECHANG ELECCOM

Heat Shrinkable Tube, PVC Insulation Tube, Dual Wall Tube, UL Cable, KS Cable, PSE Cable and more

Problem with product info?
Update request
Manufacturer
DAECHANG ELECCOM
Product Type
Machine
Brand
-
SKU
129940
Product Name
Dual Wall Tubing
Model Name
-
Size
-
Weight
-
Product Details
LONGITUDINAL SHRINK RATIO
≤±8%
3:1 Shrink ratio
OPERATING TEMP.
-45℃~125℃
SHRINK TEMP.120℃
Out jacket flame retardant
Super sealing against water, moisture or other contaminants




Technical Data

PropertyTest MethodStandard
Tensile Strength (Mpa)ASTM D2671≥10.4
Elongation (%)ASTM D2671≥300
Tensile Strength after aging (Mpa)UL224 158℃ X 168hr≥7.3
Elongation after aging (%)UL224 158℃ X 168hr ≥200
Dielectric Strength (kV/mm)IEC243≥15
Volum resistivity (Ω,cm)ASTM D876≥1X10¹⁴




Hot Melt Adhesive Property

PropertyTest MethodStantard
Water absorptionASTM D570≤0.2%
Sofening pointASTM E895℃
Strength of pearing (PE)ASTM D1000120N/25mm
Strength of pearing (AL)ASTM D100080N/25mm




Standard Size Dimensions

SizeAs suppliedAfter Recovered(mm)Standard Package (M/Spool)
inchmmInternal Diameter(mm)Internal DiameterTotal wall ThicknessWall Thickness of Adhesive
1/83.23.21.000.09±0.150.35±0.10200
3/164.84.81.601.00±0.15 0.40±0.10100
1/46.46.42.201.25±0.15 0.45±0.12100
5/167.97.92.701.30±0.15 0.50±0.12100
3/89.59.53.201.40±0.15 0.50±0.1250
1/212.712.74.201.70±0.15 0.50±0.1236.6
5/815.015.05.201.80±0.15 0.55±0.1530.5
