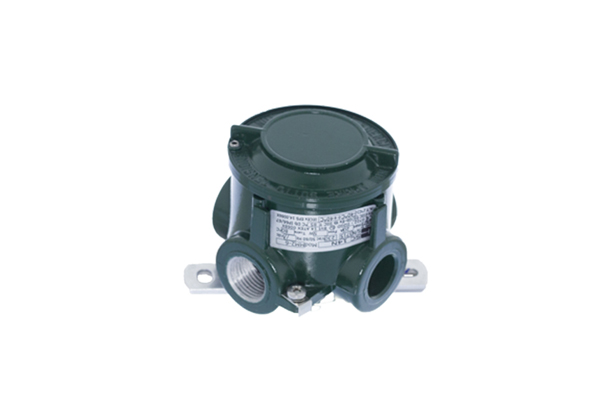

ENCLOSURES – SERIES CPL
Enclosures with threaded porthole for measuring and control devices and systems suitable for hazardous area Zone 1 & Zone 21

Ex db / Ex tb – IP66/67

These enclosures are ideal to interconnect the wires and to accommodate a vast variety of equipment and instruments. The depth can be extended by adding one of the extensions (short or long) to accommodate larger instruments. Internal anti-condense painting RAL 2004.

Certified either for the version complete with electrical apparatus or empty as an Ex component.

Features

• Type of protection: Ex db / Ex tb
• Degree of protection: IP66/67
• Certified for:
  • Gas group IIC
  • Dust group IIIC
• Max range ambient temperature: -20°C ÷ +80°C
• Material used: Aluminum light alloy
• Max rated voltage: 1000 Vac/dc
• Max rated current: 12 A up to 240 A
• Weight: 3.1 Kg up to 21.4 Kg
