• WLL of 50t
• Safety factor 4:1 and 5:1
• External dimensions: E80 x L360 x H315 mm
• Complies with the Machinery Directive 2006/42/CE
• Manufactured in compliance with the EN 1677-1 norm
• In compliance with the REACH regulation
• Individual traceability number

Description

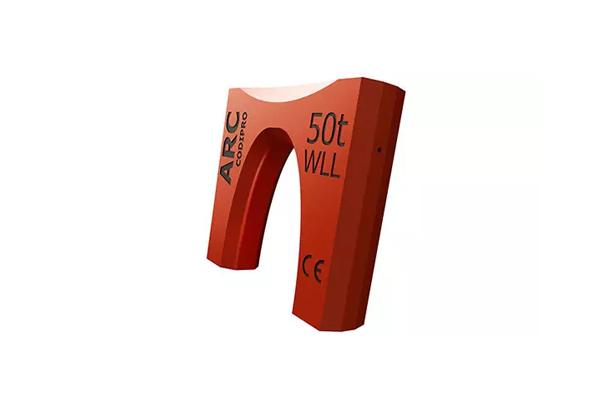

The lifting point ARC is specially designed for handling molds. It is composed of a lifting arch, and two M64 screws to bolt the arch onto the load. The working load limit is 50 t with a safety factor of 5 or 63 t with a safety factor of 4.

The lifting point has been specially designed for use with the neo50 automatic hook from Elebia. Its compatibility with standard hooks or shackles can of course be confirmed or examined on request.
