• Standard metric and UNC threads available :
  M 8 to M 22 - WLL from 0.30 t to 2.20 t
  UNC 5/16'' to UNC 7/8'' - WLL from 600 lbs to 5,100 lbs
• Safety factor 4:1 and 5:1
• Swiveling under load
• 360° rotation - 180° swivel
• Stainless-steel 316L
• Complies with the Machinery Directive 2006/42/CE
• Manufactured in compliance with the EN 1677-1 norm
• Individual traceability number

Description

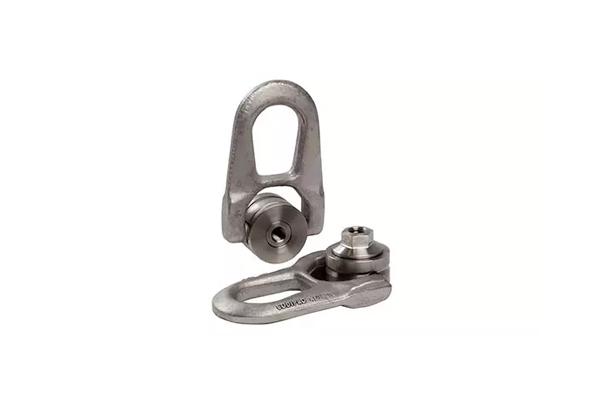

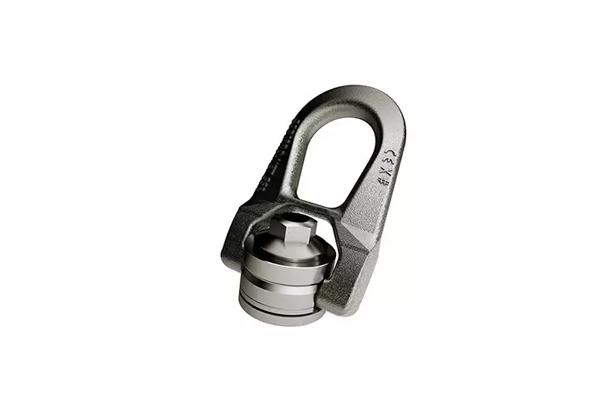

The SS.FE.DSR female stainless steel lifting ring is a double swivel ring. It is designed for rotations under load. Its double swivel ensures perfect alignment with the sling. It is composed of a stainless-steel lifting ring providing perfect corrosion resistance. This ensures optimal longevity of the lifting ring and allows it to be used in humid, chemical, and marine environments, etc. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straight lift, with angle, tilting, rotating).

The universal lifting ring SS.FE.DSR is approved for all lifting configurations from 0° to 90°, designed for use in a temperature range from -20°c to +200°c, and carries various markings, including CE, WLL, and tightening torque. It is manufactured in compliance with the REACH regulation and is also available in male and steel versions.
