Wash Down Duty Motor
Model Name
-
Series
Products
View All
Data
-
Manufacturer information
provider logo
CHUN IN

Electric motor manufacturer, Small electric motor, Large electric motor, Electric motor for Refrigerating & air-conditioning

Problem with product info?
Update request
Manufacturer
CHUN IN
Product Type
Machine
Brand
-
SKU
58109
Product Name

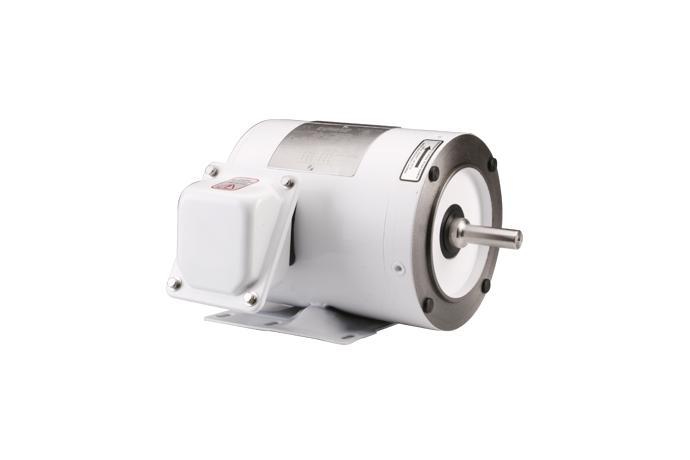

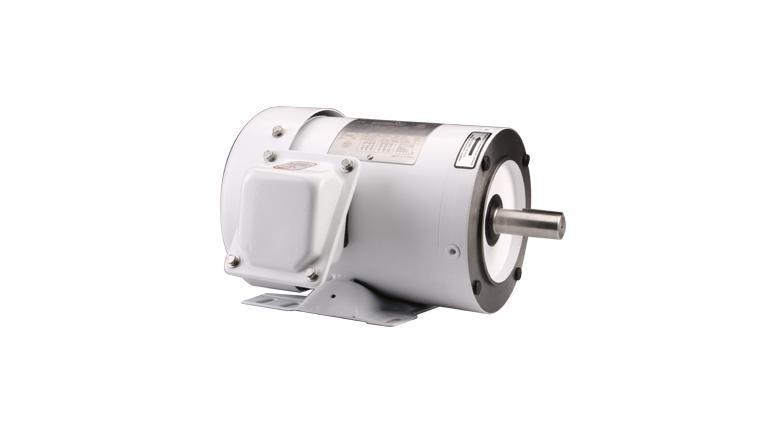

Wash Down Duty Motor
Model Name
-
Size
-
Weight
-
Product Details

Rolled Steel Frame, Stainless steel shaft and Cast Iron End Bracket Painted with Two Part Epoxy which has been certified by FDA. Suitable for humid or harsh environment area.



Capacity 1/3 ~ 10HP
Voltage 200V ~ 600V
Pole 2P, 4P, 6P, 8P
Frequency 50Hz, 60Hz
Characteristic

   1. TENV and TEFC are applied for cooling method
   2. NEMA Design : B
   3. CSA, CE and UL approved
   4. Certified as a premium motor by the DOE (USA) and CSA
   5. Insulation Class F, H
   6. Moisture is contained by applying an RTV sealant water-proof treatment
   7. Stainless steel drain plugs are installed in four(4) locations on the C-face bracket
   8. An Inverter can be operated
   9. Enclosure IP 65
Application - Food processing machines exposed to moisture
- Stock Farms, beverage factories
