Description
•Security, Monitoring and Traceability
•Data management system with barcode scanner
•Channel air distributor with HEPA filtered air
•Internal air circulation with temperature controller in cabinet
•Air curtain protecting cleaned air inside
•HST temperate glass window
•4.3” color TFT LCD with touch screen display
•Various configuration by user friendly software
•Safety key lock for control touch panel
•Validation process with printer
SPECIFICATION
| Descriptions |

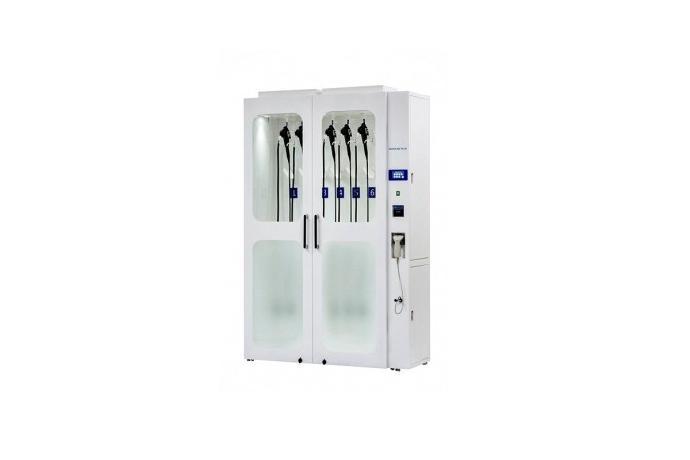

Endoscope Storage Cabinet |
|
| Model |
ENDOCAB PLUS |
|
| Materials |
Power Coating with Stainless Steel 304 |
|
| Window Glass |
HST Temperate Glass |
|
| Dimension |
W 1380 x D 510 x H 2140 (mm) |
|
| Caster |
2" Urethane and Level Support |
|
| Controller |
Display: 4.3" Color TFT LCD with Touch Screen |
|
| Key Lock for Controller Touch Panel |
Touch Panel Safety Lock |
|
|
Safety Pictograph: Lock/Unlock |
||
| Scope Holder |
7 Hangers with Coated |
|
|
2nd Stay Holder x 7 |
||
|
Scope Arrangement Wave Holder |
||
| Lamp: |
High Brightness LED type, 220Vac x 3EA |
|
|
- Manual ON |
||
|
- Manual OFF |
||
|
- AUTO: ON @ Door open, ON for setting time @ Door close |
||
| UV Lamp |
Optional (User Selectable: Lamp ON/OFF)/F6T5BLB 325NM |
|
| Temperature Control in Cabinet |
About ~40℃ |
|
| Channel Connection Ports |
1 port @ Scope |
|
| Door Interlock |
for Lamp, User selectable |
|
|
Pictograph: Door open and close |
||
| Door Safety Key Lock |
Safety Fasten Lock |
|
| Magnetic Door Lock |
for Door Holding |
|
| Channel Air Distribution |
In Sequence by 7 Solenoid Valve and 2 Air Pump |
|
|
Air Pump : AC 220V/60Hz / Max 3.5 bar |
||
| Air Filter ( internal ) |
for Channel Air Clearance, 0.2μm |
|
| Air Filter ( external ) |
W 300 x D 500 x H 50 mm / 0.1μm |
|
| Air Circulation Fan: Volume |
100 cfm, 3,000rpm, 48dB |
|
|
Internal Air Circulation |
||
| Heater |
AC 220V/60Hz, 400W |
|
| Accessory Basket with Holder |
W 250 x D 70 x H 50 (mm) |
|
| Drain Port |
Grill with Evaporation Cassette |
|
| Data Management |
Channel Load Time |
|
|
Channel Unload Time |
||
|
Total Storage Time |
||
|
Current Storage Data |
||
|
History Data for Each Channel |
||
| Barcode Scanner with Holder |
USB Interface |
|
| Printer |
2" Roll Paper |
|
|
Printing Speed: 80 mm/sec |
||
|
RS232C Interface |
||
|
Automatic Channel Data Printing |
||
|
Data Printing for Current Scope and History Data for Channel |
||
