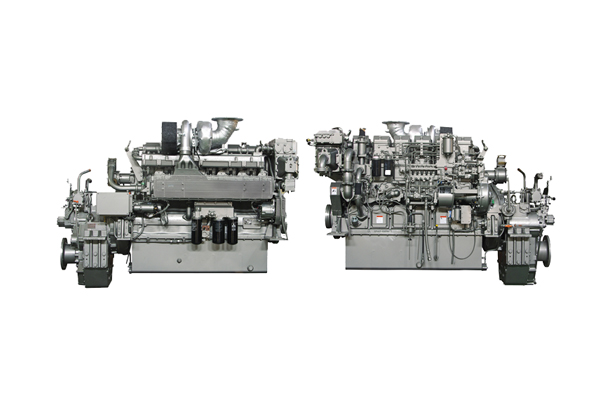

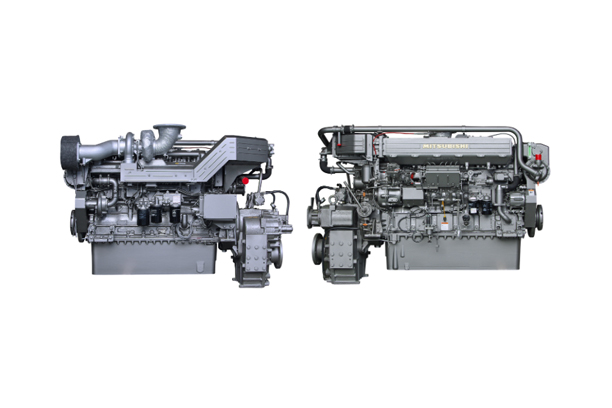

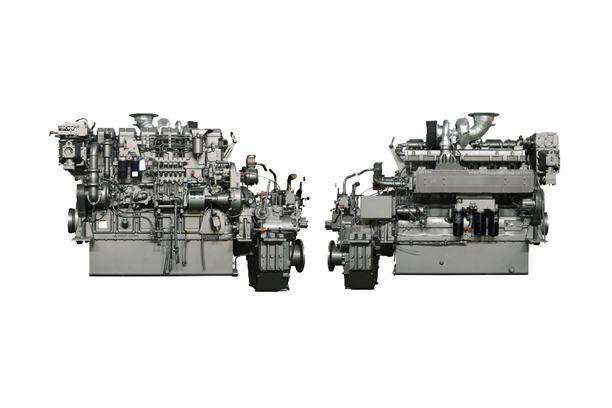

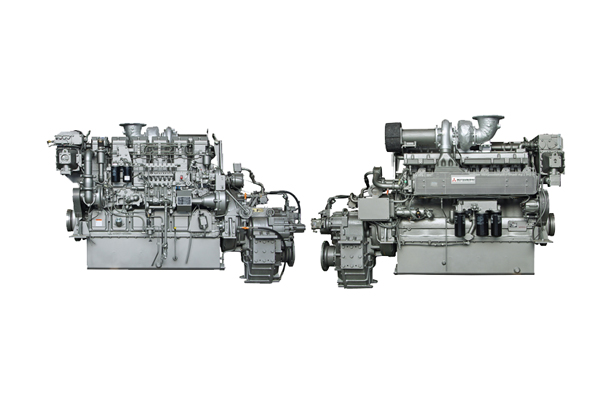

MITSUBISHI Marine Engine, S8U-M(P)TK (2030 / 1100)
Features
| Model | S6U-M(P)TK | ||
|---|---|---|---|
| Continous Rating Output (ps/rpm) | 1522/1100 | ||
| Type | 4 cylinder, water cooled, direct injection | ||
| Aspiration | Turbocharged with air cooler | Number of Cylinder | In-line 6 cylinder |
| bore (mm) | 240 | Stroke (mm) | 260 |
| Total Piston Displacement (ℓ) | 70.6 | Compression Ratio | 13.5 (12.7) : 1 |
| Fuel Oil | Diesel fuel oil (ASTM No.2-D) | Fuel Consumption (g/ps.h) | 200 |
| Lubricating system | Forced lubrication | ||
| Lubricating oil | API service grade CF class | ||
| Cooling system | Forced circulation of fresh water by fresh water | ||
| Fresh water pump type | Centrifugal type | ||
| Sea water pump type | Centrifugal type | ||
| Starting system | Compressed air direct type | ||
| Fuel Injection Pump | Individual unit pump | ||
| Dry Weight (kg) | 8350 | ||
