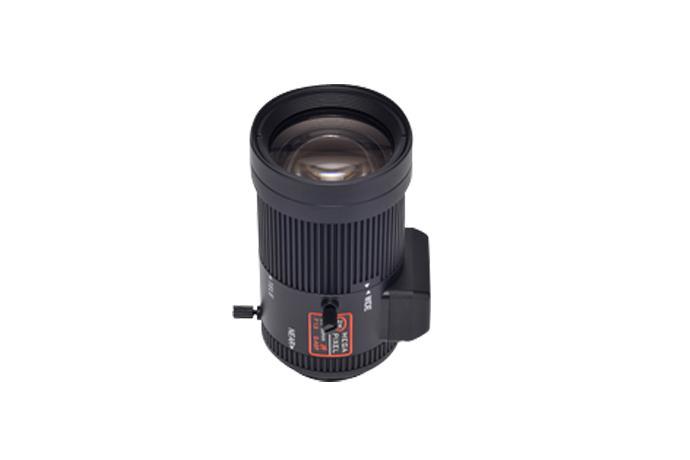

Product Name Lens
Model BW2M5050CS
Series Accessories
Catalog Aspherical Glass.pdf
Product Description



- Sensor : 1/2.7
- Focal Length : 2.8~12mm
- F-no. : 1.2
- Function : 1.3 Mega, IR, G-ASP





MODEL NO.

BW2M5050CS

Effective Lens Aperture

Front

-

Rear

-

Focal Length

5.0~ 50.0

Back Focal Length

7.68 In Air

F-Number

1 : 1.6

Mechanical BFL

12.5In Air

Sensor Size

1/2.7"

Mount Type

CS Mount

Operation

Iris

AUTO (F1.6~360)

Dimensions

Ø43.0 x 77.0

Focus

-

Weight

-

Object Size at 50cm

5.0mm

-

Objective Dimension at M.O.D

-

50.0mm

-

Angle of View

D(W~T)

1/2.7"

66°~ 7.4°

Remarks
Element :

*1Aspherical Glass
*IMAGE Circle:Ø6.62
*2Mega Pixel

H(W~T)

58°~ 6.5°

V(W~T)

33°~ 3.7°

IRIS

Drive

190Ω

Damping

855Ω




Camlux Lens BW2M5050CS
