BUMHAN

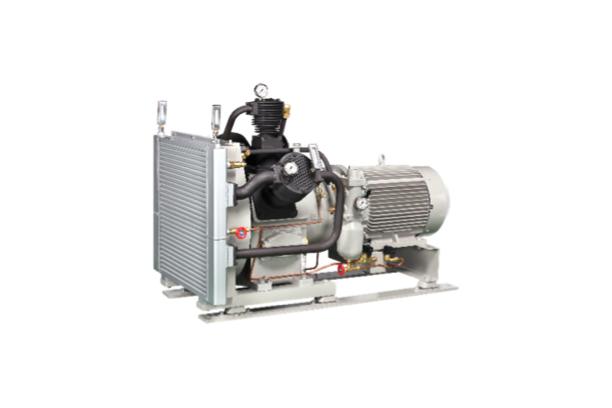

Air-cooled Air Compressor

Model

Series

Air-cooled air compressor

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description

Air-cooled air compressor

BL series consists of two stage air-cooled air compressor and three stage air-cooled air compressor with the maximum pressure of 40bar. Satisfying the needs of the market, this series has been recognized for its quality and reliability. In particular, the three stage air compressor has helped the compressor and compressor market to evolve into more modern and more economical ones.

Advantages of Bumhan’s compressor

- Its compact design minimizes installation space
- Reduction of installation costs due to the minimal space
- Reduction of operating costs due to long maintenance intervals
- Low noise and low vibration through continuous improvements
- It provides specifications for light weight
- Suitable for fresh water and seawater
- Operable in a high temperature environment at its temperature range from 5°C to 55°C

3-stage, Air cooled Capacity : 190m3/h × 40bar

3-stage, Air cooled Capacity : 38m3/h × 80bar

4-stage, Air cooled Capacity : 35m3/h × 400bar

Air-cooled Air Compressors – 40 bar

Model	Stage	Max. Pressure	Speed (rpm)	Free Air Delivery (m3/h)	Power required (kW)	Heat dissipation (kcal/h)	Cooling air required (ℓ/min)	Dimension (L x W x H, mm)
BL-20	2	40	970	12	2.9	2510	15	879 x 560 x 650
			1170	15	3.5	3020	18	879 x 560 x 650
			1470	18	4.4	3800	22	879 x 560 x 650
			1770	22	5.3	4570	27	879 x 560 x 650
BL-30	2	40	970	18	4.2	3580	21	917 x 570 x 660
			1170	22	5.1	4380	26	917 x 570 x 660
			1470	28	6.4	5500	32	917 x 570 x 660
			1770	33	7.7	6630	39	917 x 570 x 660
BL-50	2	40	970	33	6.8	5850	34	1182 x 660 x 680
			1170	40	8.2	7050	41	1182 x 660 x 680
			1470	50	10.3	8860	52	1182 x 660 x 680
			1770	60	12.4	10670	62	1182 x 660 x 680
BL-70	2	40	970	44	9.3	7970	47	1256 x 830 x 930
			1170	53	11.2	9610	56	1256 x 830 x 930
			1470	66	14	12070	70	1256 x 830 x 930
			1770	80	16.9	14530	85	1256 x 830 x 930
BL-85	3	40	970	55	10.8	9330	54	1450 x 780 x 980
			1170	66	13.1	11250	66	1450 x 780 x 980
			1470	83	16.4	14140	82	1450 x 780 x 980
			1770	100	19.8	17020	99	1450 x 780 x 980
BL-105	3	40	970	66	13.6	11730	68	1450 x 780 x 980
			1170	79	16.4	14150	82	1450 x 780 x 980
			1470	100	20.7	17770	103	1450 x 780 x 980
			1770	120	24.9	21400	124	1450 x 780 x 980
BL-120	3	40	970	67	15.6	13450	78	1500 x 830 x 930
			1170	81	19.2	16500	96	1500 x 830 x 930
			1470	102	24.5	21100	123	1500 x 830 x 930
			1770	124	30.1	25860	150	1500 x 830 x 930
BL-160	3	40	970	82	18.9	16290	95	1555 x 830 x 930
			1170	99	22.8	19650	114	1555 x 830 x 930
			1470	125	28.7	24680	143	1555 x 830 x 930
			1770	150	34.5	29720	172	1555 x 830 x 930
BL-180	3	40	970	104	21	18070	105	1587 x 1045 x 1090
			1170	125	25.3	21790	127	1587 x 1045 x 1090
			1470	158	31.8	27380	159	1562 x 1045 x 1090
			1770	190	38.3	32960	191	1562 x 1045 x 1090
BL-225	3	40	970	136	26	22370	130	1587 x 1045 x 1090
			1170	164	31.4	26980	157	1587 x 1045 x 1090
			1470	206	39.4	33890	197	1587 x 1045 x 1090
			1770	246	47.4	40810	237	1587 x 1045 x 1090
BL-450	3	40	970	260	49	42170	245	2044 x 1170 x 1135
			1170	315	59.1	50870	295	2044 x 1170 x 1135
			1470	390	74.3	63910	370	1872 x 1170 x 1135
			1770	470	89.5	76950	446	1872 x 1170 x 1135
BL-550	3	40	970	320	61.1	52530	304	2044 x 1170 x 1135
			1170	385	73.7	63370	367	2044 x 1170 x 1135
			1470	480	92.6	79610	461	1958 x 1170 x 1135

Air-cooled Air Compressors – 80 bar

Model	Stage	Max. Pressure	Speed (rpm)	Free Air Delivery (m3/h)	Power required (kW)	Heat dissipation (kcal/h)	Cooling air required (ℓ/min)	Dimension (L x W x H, mm)
BLM-85	3	80	970	54	13.4	11520	67	1450 x 780 x 985
			1170	65	16.2	13900	81	1450 x 780 x 985
			1470	81	20.3	17460	102	1450 x 780 x 985
			1770	98	24.4	21030	122	1450 x 780 x 985
BLM-120	3	80	970	38	18.1	15560	91	1500 x 830 x 930
			1170	46	21.8	18770	109	1500 x 830 x 930
			1470	57	27.4	23580	137	1500 x 830 x 930
			1770	124	33	23580	165	1500 x 830 x 930
BLM-160	3	80	970	84	21.5	18520	108	1587 x 830 x 930
			1170	101	26	22340	130	1587 x 830 x 930
			1470	127	32.6	28070	163	1587 x 830 x 930
			1770	153	39.3	33800	196	1587 x 830 x 930
BLM-180	3	80	970	102	27.2	23380	136	1587 x 1045 x 1090
			1170	123	32.8	28200	164	1587 x 1045 x 1090
			1470	155	41.2	35430	206	1587 x 1045 x 1090
			1770	186	49.6	42660	247	1587 x 1045 x 1090
BLM-225	3	80	970	130	33.6	28940	168	1665 x 1045 x 1090
			1170	155	40.6	34910	203	1665 x 1045 x 1090
			1470	195	51	43860	254	1665 x 1045 x 1090
			1770	235	61.4	52810	306	1665 x 1045 x 1090
BLM-180	3	80	970	102	27.2	23392	136	1587 x 1045 x 1090
			1170	123	32.8	28208	164	1587 x 1045 x 1090
			1470	155	41.2	35432	206	1587 x 1045 x 1090
			1770	186	49.6	42656	248	1587 x 1045 x 1090
BLM-225	3	80	970	128	33.7	28982	168.5	1665 x 1045 x 1090
			1170	154	40.6	34916	203	1665 x 1045 x 1090
			1470	193	51	43860	255	1665 x 1045 x 1090
			1770	233	61.4	52804	307	1665 x 1045 x 1090

Air-cooled Air Compressors – 250~400 bar

Model	Stage	Max. Pressure	Speed (rpm)	Free Air Delivery (m3/h)	Power required (kW)	Heat dissipation (kcal/h)	Cooling air required (ℓ/min)	Dimension (L x W x H, mm)
LHH-10	3	250	970	7	3.7	3182	18.5	700 x 550 x 520
			1170	9	4.7	4042	23.5	700 x 550 x 520
			1470	11	5.8	4988	29	700 x 550 x 520
			1770	13	6.9	5934	34.5	700 x 550 x 520
LHH-25	4	400	970	14	6	5160	30	1210 x 680 x 760
			1170	16	7.1	6106	35.5	1210 x 680 x 760
			1470	21	8.9	7654	44.5	1210 x 680 x 760
			1770	25	11	9460	55	1210 x 680 x 760
LHH-35	4	400	970	19	8.3	7138	41.5	1260 x 680 x 760
			1170	24	10	8600	50	1260 x 680 x 760
			1470	30	12.6	10836	63	1260 x 680 x 760
			1770	35	15.2	13072	76	1260 x 680 x 760
BLH-70	4	350	970	37	14.2	12180	71	1500 x 980 x 930
			1170	45	17.1	14700	86	1500 x 980 x 930
			1470	55	21.5	18460	107	1500 x 980 x 930
			1770	67	25.8	22230	129	1500 x 980 x 930
BLH-120	4	350	970	67	24.9	21450	125	1532 x 980 x 930
			1170	81	30.1	25870	150	1532 x 980 x 930
			1470	102	37.8	32500	189	1532 x 980 x 930
			1770	123	45.5	39130	227	1532 x 980 x 930
BLH-180	4	350	970	101	37.5	32220	187	1710 x 1300 x 1090
			1170	122	45.2	38870	225	1710 x 1300 x 1090
			1470	153	56.8	48830	283	1710 x 1300 x 1090
			1770	184	68.4	58800	341	1710 x 1300 x 1090
