This product is manufactured by
BEE RYONG ELECTRONICS
Manufacturer information
BEE RYONG ELECTRONICS
Terminal electronic parts manufacturer, Terminal block, Connector, PCB, Assembly
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
BEE RYONG ELECTRONICS
Product Type
Machine
Brand
-
SKU
25431
Product Name

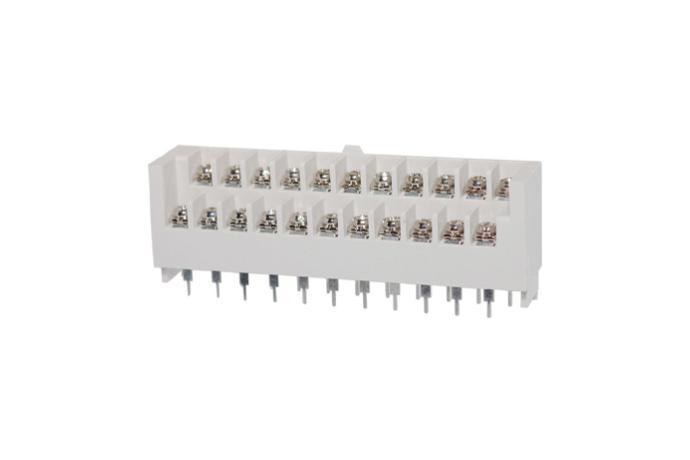

Terminal_Block
Model Name
762S2
Size
-
Weight
-
Product Details
● Rating : 250V 10A
● Insulation Resistance : More Than 1000MΩ DC 500V
● Withstand Voltage : AC2000V Per Minute
● Wire Size / Range : AWG18~26
● Maximum Acceptable Temperature : -40°C ~ +85°C
A-B Dimension
|
P |
22 |
34 |
|
A |
92.4 |
138.3 |
|
B |
76.2 |
121.92 |
|
No |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.B.T. |
UL94V-0 |
- |
- |
|
2 |
Terminal #1 |
BRASS |
C2680R |
Sn |
- |
|
3 |
Terminal #2 |
BRASS |
C2680R |
Sn |
- |
|
4 |
Screw |
SWCH10A |
- |
Ni |
M3 * 6 |
|
5 |
WASHER |
SPCC |
Ni |
□6 * 6 |
