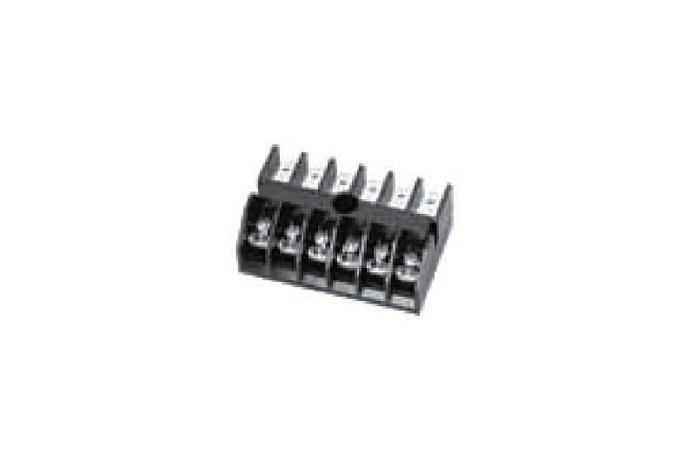

| Product Name | Terminal_Blocks |
|---|---|
| Model | 950PD |
| Series | Tab Type |
| Catalog |
※ Discontinued
● Rating : 300V 25A
● Insulation Resistance : More Than 1000MΩ DC 500V
● Withstand Voltage : AC2500V Per Minute
● Wire Size / Range : AWG14~22
● Maximum Acceptable Temperature : -40°C ~ +85°C
|
No |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.B.T. |
UL94V-0 |
- |
- |
|
2 |
Terminal Plate |
BRASS |
C2680R |
Ni |
- |
|
3 |
Screw |
SWCH10A |
- |
Ni |
M4 * 8 |
|
4 |
Wave Washer |
HSWR62 |
Ni |
Ø 6.7 |
|
|
5 |
Washer |
SPCC |
Ni |
□7.8 * 9.8 |
|
|
6 |
Base Cover |
P.B.T. |
UL94-0 |
|
|
