Product Name Terminal_Blocks
Model 944A3
Series Tab Type
Catalog
Product Description

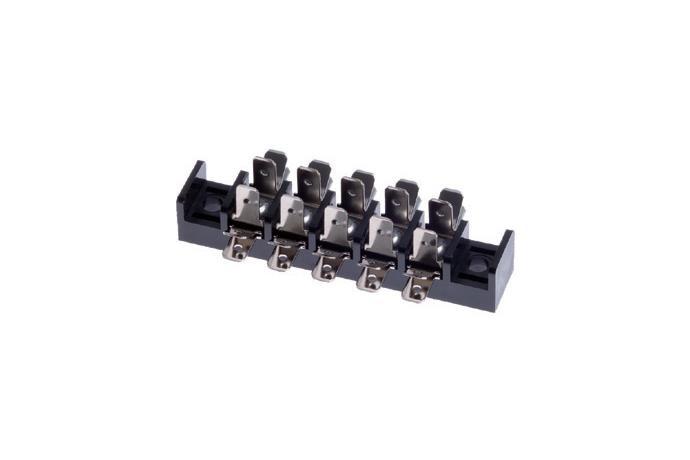

BEE RYONG Terminal_Blocks 944A3

● Rating : 250V 20A

● Insulation Resistance : More Than 1000MΩ DC 500V

● Withstand Voltage : AC2000V Per Minute

● Wire Size / Range : AWG16~22

● Maximum Acceptable Temperature : -40°C ~ +85°C

BEE RYONG Terminal_Blocks 944A3 1

A-B Dimension

P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

A±0.8

-

39.26

48.70

58.14

67.58

77.02

86.46

95.90

105.34

114.78

124.22

133.66

143.10

152.54

161.98

171.42

180.86

190.3

B±0.5

-

28.32

37.76

47.2

56.64

66.08

75.52

84.96

94.4

103.84

113.28

122.72

132.16

141.6

151.04

160.48

169.92

179.36





No

Component Part

Material

Standard

Plated

Remark

1

Frame

P.B.T.

UL94V-0

-

-

2

Terminal #1

BRASS

C2680R

Ni

-

3

Terminal #2

BRASS

C2680R

Ni

-

4

Terminal #3​

BRASS

C2680R

Ni​

-

5

Rivet

AL

-



-

Products of BEE RYONG
P.C.B Type
