Product Name Terminal_Blocks
Model 944D
Series P.C.B Type
Catalog
Product Description

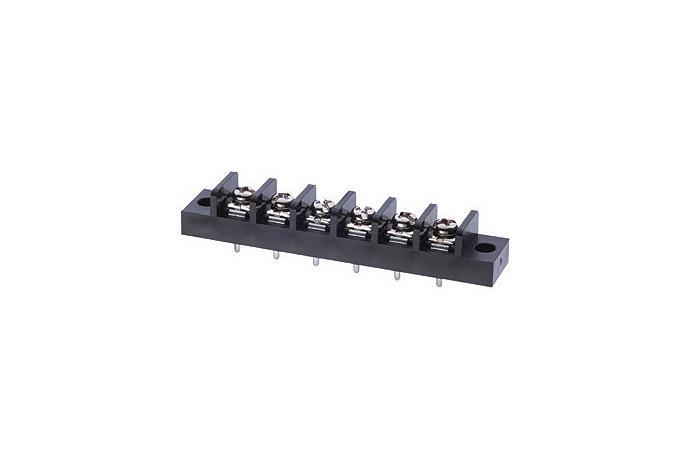

BEE RYONG Terminal_Blocks 944D

● Rating : 250V 20A

● Insulation Resistance : More Than 1000MΩ DC 500V

● Withstand Voltage : AC2000V Per Minute

● Wire Size / Range : AWG16~22

● Maximum Acceptable Temperature : -40°C ~ +85°C

BEE RYONG Terminal_Blocks 944D 1

A-B-C Dimension

 P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

 16

17

18

 A±0.8

-

34.94

44.38

53.82

63.26

72.70

82.14

91.58

101.02

110.46

119.90

129.34

138.78

148.22

157.66

167.10

176.54

185.98

 B±0.8

 -

 27.44

36.88

46.32

55.76

65.20

74.64

84.08

93.52

102.96

112.40

121.84

131.28

140.72

150.16

159.60

169.04

178.48

 C±0.5

 -

9.44

18.88

28.32

37.76

47.2

56.64

66.08

75.52

84.96

94.4

103.84

113.28

122.72

132.16

141.6

151.04

160.48



 NO

 Component Part

 Material

 Standard

 Plated

 Remark

 1

 Frame

 P.B.T.

 UL94V-0

 -

 -

 2

 Terminal

 BRASS

 C2680R

 Sn

 -

 3

 Screw

 SWCH10A

 -

 Ni

 M3.5 * 8

 4

 WASHER

SPCC

-

Ni

□ 7.2 * 7.2



Products of BEE RYONG
P.C.B Type
