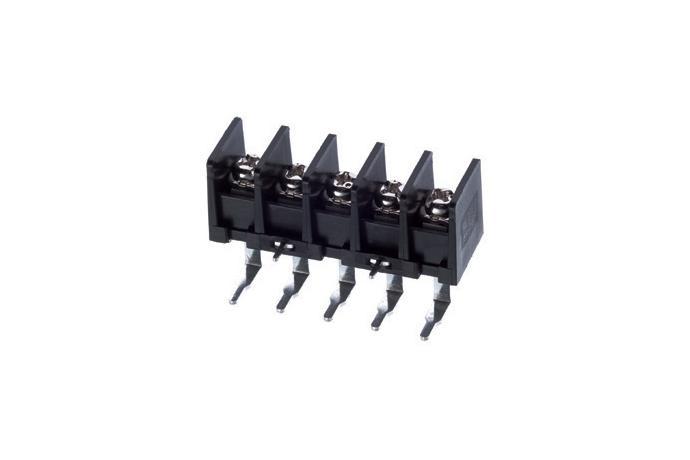

| Product Name | Terminal_Blocks |
|---|---|
| Model | 762ELW |
| Series | P.C.B Type |
| Catalog |
※ Minimum bending 2mm (Option)
※ Cover Option
● Rating : 250V 10A
● Insulation Resistance : More Than 1000MΩ DC 500V
● Withstand Voltage : AC2000V Per Minute
● Wire Size / Range : AWG18~26
● Maximum Acceptable Temperature : -40°C ~ +85°C
A-B Dimension
|
P |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
|
A±0.8 |
- |
16.75 |
24.37 |
31.99 |
39.61 |
47.23 |
54.85 |
62.47 |
70.09 |
77.71 |
85.33 |
92.95 |
100.57 |
|
B±0.5 |
- |
7.62 |
15.24 |
22.86 |
30.48 |
38.1 |
45.72 |
53.34 |
60.96 |
68.58 |
76.20 |
83.82 |
91.44 |
|
NO |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.B.T. |
UL94V-0 |
- |
- |
|
2 |
Terminal |
BRASS |
C2680R |
Sn |
- |
|
3 |
Pin |
BRASS |
C2680R |
- |
- |
|
4 |
Screw |
SWCH10A |
- |
Ni |
M3 * 6 |
|
5 |
WASHER |
SPCC |
- |
Ni |
□6 * 6 |
