Product Name Terminal_Blocks
Model 762DT(*L)
Series P.C.B Type
Catalog
Product Description

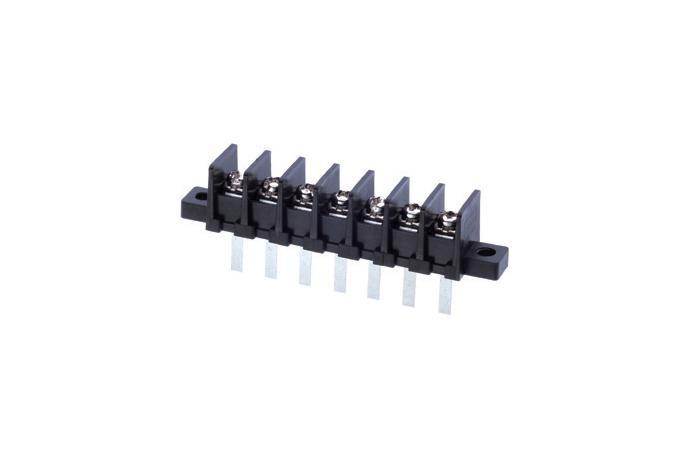

BEE RYONG Terminal_Blocks 762DT(*L)

(*L) = Option
※ Cover Option


● Rating : 250V 10A

● Insulation Resistance : More Than 1000MΩ DC 500V

● Withstand Voltage : AC2000V Per Minute

● Wire Size / Range : AWG18~26

● Maximum Acceptable Temperature : -40°C ~ +85°C

BEE RYONG Terminal_Blocks 762DT(*L) 1

A-B-C Dimension

 P

1

2

3

4

5

6

7

8

9

10

11

12

 13

14

15

16

17

18

19

20

 21

22

23

24

25

26

27

28

29

30

 A±0.8

-

31.50

39.12

46.74

54.36

61.98

69.60

77.22

84.84

92.46

100.08

107.70

115.32

122.94

130.56

138.18

145.80

153.42

161.04

168.66

176.28

183.90

191.52

199.14

206.76

214.38

222.00

229.62

237.24

244.86

 B±0.8

-

24.10

31.72

39.34

46.96

54.58

62.20

69.82

77.44

85.06

92.68

100.30

107.92

115.54

123.16

130.78

138.40

146.02

153.64

161.26

168.88

176.50

184.12

191.74

199.36

206.98

214.60

222.22

229.84

237.46

 C±0.5

-

 7.62

15.24

22.86

30.48

38.10

45.72

53.34

60.96

68.58

76.20

83.82

91.44

99.06

106.68

114.30

121.92

129.54

137.16

144.78

152.40

160.02

167.64

175.26

182.88

190.50

198.12

205.74

213.36

220.98



 NO

 Component Part

 Material

 Standard

 Plated

 Remark

 1

 Frame

P.B.T.

UL94V-0

-

 -

 2

 Terminal

BRASS

C2680R

Sn

 -

 3

 Screw

SWCH10A

-

Ni

M3 * 6

 4

 WASHER

SPCC

-

Ni

□6 * 6

Products of BEE RYONG
P.C.B Type
