Product Name Terminal_Blocks
Model 508CH
Series Miniature Type
Catalog
Product Description

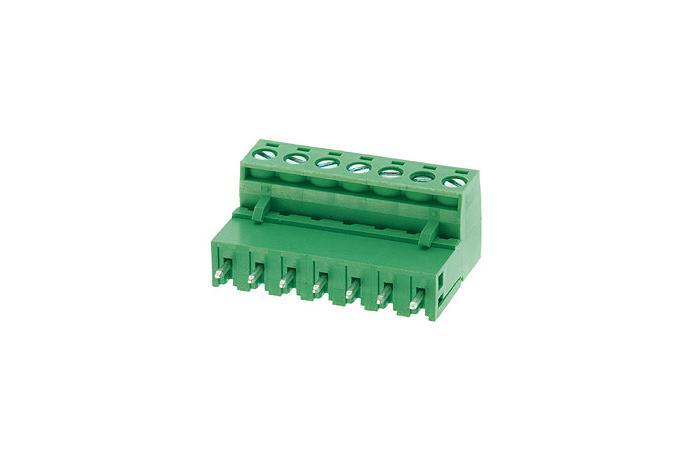

BEE RYONG Terminal_Blocks 508CH

● Rating : 300V 10A

● Insulation Resistance : More Than 1000MΩ DC 500V

● Withstand Voltage : AC2500V Per Minute

● Wire Size / Range : AWG12~26

● Maximum Acceptable Temperature : -40°C ~ +105°C

BEE RYONG Terminal_Blocks 508CH 1

A-B Dimension

P

1

2

3

4

5

6

7

8

9

10

10.2

15.2

20.3

25.4

30.5

35.6

40.6

45.7

50.8

5.08

10.2

15.2

20.3

25.4

30.5

35.6

40.6

45.7





※ tolerance : ±0.04mm / pin

No

Component Part

Material

Standard

Plated

Remark

1

Frame

P.A.66

UL94V-0

-

-

2

Terminal

BRASS

C5210

Sn



3

Screw

​STEEL​

C1018

Zn+3​

M3 * 5

4

Clamp

BRASS

H59

Ni
