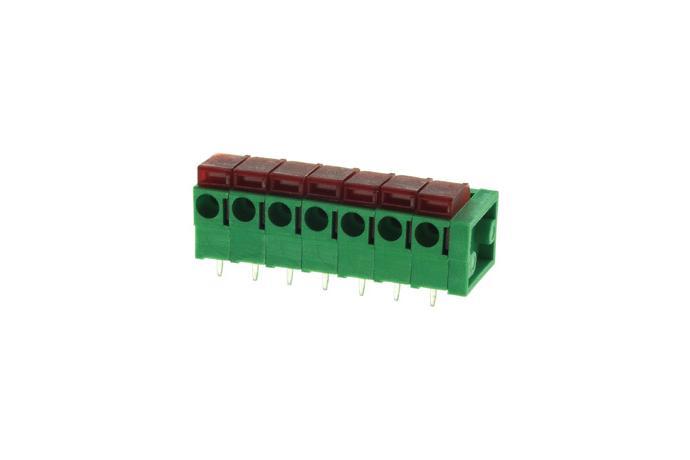

| Product Name | Terminal_Blocks |
|---|---|
| Model | 500JL |
| Series | Onetouch Type |
| Catalog |
● Rating : 300V 10A
● Insulation Resistance : More Than 1000MΩ DC 500V
● Withstand Voltage : AC2500V Per Minute
● Wire Size / Range : AWG14~22
● Maximum Acceptable Temperature : -40°C ~ +105°C
A-B Dimension
|
A.B Dimension |
|
|
A±0.8 |
(P х 5.0) + 2.5 |
|
B±0.8 |
(P - 1) x 5 |
※ tolerance : ±0.04mm / pin
|
No |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.A.66 |
UL94V-0 |
- |
- |
|
2 |
Push Button |
P.A.66 |
UL94V-0 |
- |
- |
|
3 |
Terminal |
BRASS |
C2680R |
Sn |
- |
|
4 |
Plate Spring |
STAINLESS |
- |
Ni |
- |
