Manufacturer
BAND-IT
Product Type
Machine
Brand
-
SKU
130440
Product Name
Mounting Plates (Mounting Hardware)
Model Name
-
Size
-
Weight
-
Product Details

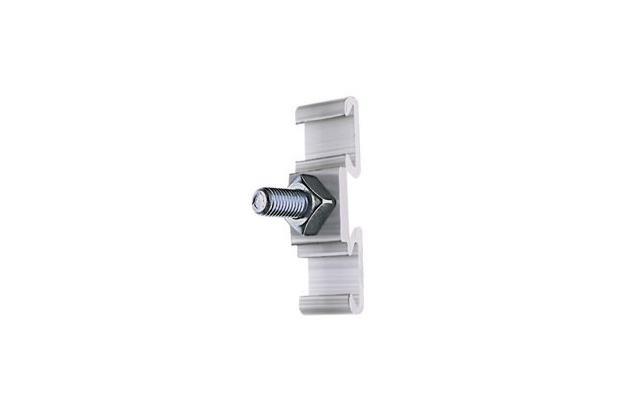

MOUNTING PLATES

Aluminium extruded plate with 5/8 - 11 x 2" 50.8) plated bolt and nut.


- Available in two sizes

- Band slot width 1.375" to accomodate a single or double wrap of our 1 1/4" wide x .044 thick Giant Band




PRODUCT SPECIFICATIONS

PART #DESCRIPTION PACKAGE QUANTITY PACKAGE WEIGHT (KG)
D51089Mounting Plate, Aluminium, 1-1/2" (38.1 mm) x 4-3/4" (120.7mm) with a 2" long 5/8" plated bolt.25/Box6.8
D51289Mounting Plate, Aluminium, 1-1/2" x 5-1/4" with a 2" long 5/8" plated bolt.25/Box9.6
D51389Mounting Plate, Aluminium, 1-1/2" x 5-1/4" with a 3" long 5/8" plated bolt.25/Box9.6
