ASFLOW
ASFLOW
Description

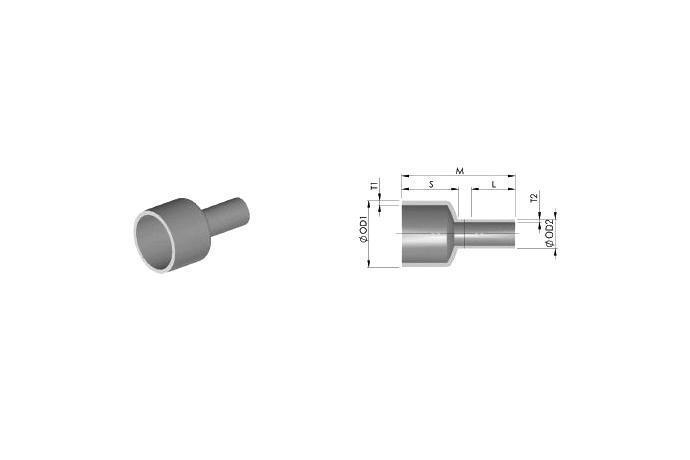

| OD1 | OD2 | S | M | OD1 | OD2 | S | M |
| 3/8″ | 1/4″ | – | – | 3″ | 1/2″~1/4″,8A | 38.1 | 73 |
| 1/2″ | 3/8″,1/4″ | – | – | 1 1/4″~5/8″,25A~10A | 80 | ||
| 3/4″ | 1/2 | 19.1 | 54 | 2″, 1 1/2″,50A,40A,32A | (90) | ||
| 5/8″,10A | 60 | 2 1/2″,65A | (95) | ||||
| 1″ | 1/2″~1/4″,8A | 25.4 | 60 | 4″ | 1/2″~1/4″,8A | 63.5 | 98 |
| 3/4″,5/8″,15A,10A | 67 | 1 1/4″~5/8″,25A~10A | 105 | ||||
| 1 1/4″ | 1/2″~1/4″,8A | 38.1 | 73 | 2″, 1 1/2″,50A,40A,32A | 115 | ||
| 1″,3/4″,5/8″,20A~10A | 80 | 3″,2 1/2″,80A,65A | (125) | ||||
| 1 1/2″ | 1/2″~1/4″,8A | 38.1 | 73 | 5″ | 1/2″~1/4″,8A | – | – |
| 1 1/4″~5/8″,25A~10A | 80 | 1 1/4″~5/8″,25A~10A | |||||
| 2″ | 1/2″~1/4″,8A | 38.1 | 73 | 2″, 1 /2″,50A,40A,32A | |||
| 1 1/4″~5/8″,25A~10A | 80 | 4″,3″,2 1/2″,100A,80A,65A | |||||
| 1 1/2″,40A,32A | (90) | 6″ | 1/2″~1/4″,8A | – | – | ||
| 2 1/2″ | 1/2″~1/4″,8A | 38.1 | 73 | 1 1/4″~5/8″,25A~10A | |||
| 1 1/4″~5/8″,25A~10A | 80 | 2″,1 1/2″,50A,40A,32A | |||||
| 2″,1 1/2″,50A,40A,32A | (90) | 4″,3″,2 1/2″,100A,80A,65A | |||||
| 5″,125A | |||||||
| unit=mm | |||||||
