ASFLOW

ASFLOW

Clean Lap

Model

Series

Bend Fitting

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description

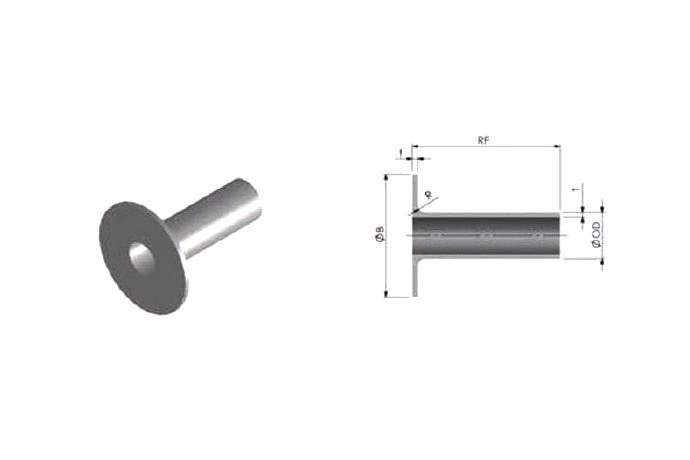

TUBE SIZE

Size 3/4″ 1″ 11/4″ 11/2″ 2″ 21/2″ 3″ 4″ 5″ 6″
OD 19.05 25.4 31.8 38.1 50.8 63.5 76.2 101.6 127 152.4
RF 55 55 55 70 70 70 75 75 85 90
B 51 56 67 76 81 96 116 136 182 212
T 2 2 2 2 2 2 2 2.5 3 3
R 3 3 3 3 3 4 4 5 5 5
unit=mm



PIPE SIZE

Size 10A 15A 20A 25A 32A 40A 50A 65A 80A 100A 125A 150A 200A
OD 17.3 21.7 27.2 34 42.7 48.6 60.5 76.3 89.1 114.3 139.8 165.2 216.3
RF 55 55 55 55 70 70 70 75 75 75 85 90 90
B JIS 5K 39 44 49 59 70 75 85 110 121 141 176 206 252
JIS 10K 46 51 56 67 76 81 96 116 126 151 182 212 262
t 2 2 2 2 2 2 2 2.5 2.5 2.5 3 3 3
R 3 3 3 3 3 3 4 4 5 5 5 5 5
unit=mm



MANUAL-WELDING

PIPE SIZE

Size 100A 125A 150A 200A 250A 300
OD 114.3 139.8 165.2 216.3 267.4 318.5
RF 50 50 50 65 65 65
B JIS 5K 151 182 212 262 324 368
JIS 10K 151 182 212 262 324 368
t 2.5 5 5 7 7 9
R 5 5 5 5 5 5
unit=mm
