product Image
Micro Elbow
Model Name
AC-90ME Series
Series
Weld Fitting
View All
Data
-
Manufacturer information
provider logo
ASFLOW

Semi conductor equipment and High purity valve for high purity gas line manufacturer, Fitting, Pipe, Tube, Valve, Regulator and more

Problem with product info?
Update request
Manufacturer
ASFLOW
Product Type
Machine
Brand
-
SKU
53486
Product Name
Micro Elbow
Model Name
AC-90ME Series
Size
-
Weight
-
Product Details

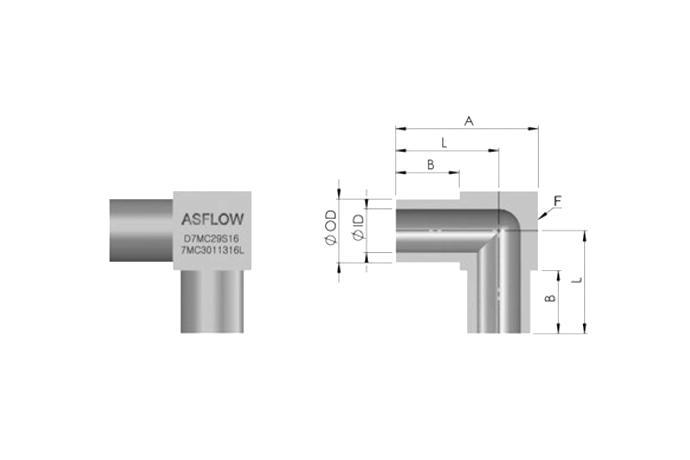

Size
(OD)		 Ordering
Number		 OD ID A B L F Working Pressure
bar(psig)
1/4″ AC-90ME04 6.35 4.35 14.29 6.35 10.32 7.94 351(5100)
3/8″ AC-90ME06 9.53 7.53 17.46 6.35 11.91 11.11 227(3300)
1/2″ AC-90ME08 12.70 10.22 20.64 6.35 13.50 14.29 254(3700)
3/4″ AC-90ME12 19.05 15.75 27.00 6.35 16.68 20.65 165(2400)
6M AC-90ME6M 6.00 4.00 14.29 6.35 10.32 7.94 420(6095)
8M AC-90ME8M 8.00 6.00 17.46 6.35 11.91 11.11 310(4499)
10M AC-90ME10M 10.00 8.00 17.46 6.35 11.91 11.11 240(3483)
12M AC-90ME12M 12.00 10.00 20.64 6.35 13.50 14.29 200(2902)
