ASFLOW is a technologically innovative company specializing in the manufacturing of high-purity piping components essential for semiconductor equipment and high-purity special gas lines. The company successfully localized high-purity piping components for semiconductor production lines and devices, which were previously entirely dependent on imports due to a lack of domestic core technology. It is a leading Korean enterprise with a diverse product portfolio including tubes, fittings, valves, regulators, filters, and diffusers. The company supplies core components for semiconductor process gas supply and control to major domestic and international customers.

반도체 장비 및 고순도 특수가스 라인에 필수적인 고청정 배관 부품을 제조하는 기술혁신 부품소재 전문기업. 국내 원천기술 부재로 전량 수입에 의존하던 반도체 배관 생산라인 및 장치용 고청정 배관부품의 성공적인 국산화. 튜브, 피팅, 밸브, 레귤레이터, 필터, 디퓨저 등 다양한 제품 포트폴리오를 구축한 대한민국 대표기업. 반도체 공정가스 공급 및 제어용 핵심 부품을 국내외 주요 고객사에 공급하는 글로벌 기업.

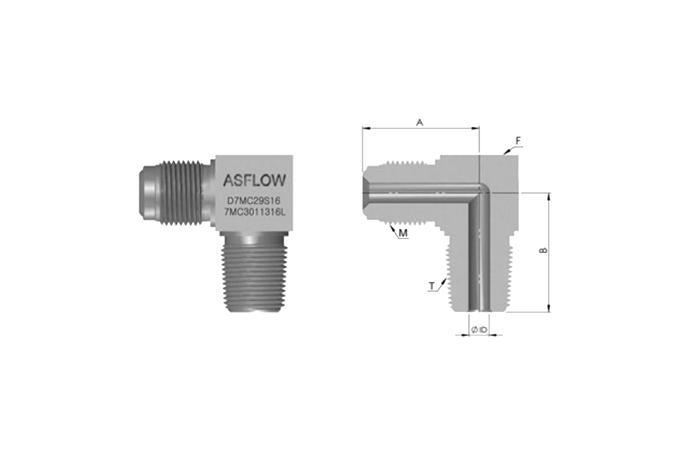

Head Size	T-NPT Size	Ordering Number	ID	A	B	F	M	Working Pressure bar(psig)
Head Size	T-NPT Size	Ordering Number	ID	A	B	F	M	NI	316L
1/4″	1/4″ NPT	AC-MEC04	4.35	27.00	26.67	16.00	9/16-18UNF	551(8000)	689(10000)
1/2″	1/2″ NPT	AC-MEC08	10.22	36.80	36.83	24.00	7/8-14UNF	241(3500)	296(4300)
1/2″	1/4″ NPT	AC-MEC08-04	4.35	36.80	26.22	24.00	7/8-14UNF	241(3500)	296(4300)
1/2″	3/8″ NPT	AC-MEC08-06	7.53	36.80	26.22	24.00	7/8-14UNF	241(3500)	296(4300)
3/4″	3/4″ NPT	AC-MEC12	15.75	48.77	43.50	33.30	1 1/4-18UNEF	206(3000)	254(3700)
3/4″	1/4″ NPT	AC-MEC12-04	4.35	48.77	30.87	33.30	1 1/4-18UNEF	206(3000)	254(3700)
3/4″	3/8″ NPT	AC-MEC12-06	7.53	48.77	30.87	33.30	1 1/4-18UNEF	206(3000)	254(3700)
3/4″	1/2″ NPT	AC-MEC12-08	10.22	48.77	35.70	33.30	1 1/4-18UNEF	206(3000)	254(3700)
1″	1″ NPT	AC-MEC16	22.10	50.80	45.28	42.80	1 1/2-20UN	165(2400)	206(3000)
1″	1/4″ NPT	AC-MEC16-04	4.35	50.80	35.62	42.80	1 1/2-20UN	165(2400)	206(3000)
1″	3/8″ NPT	AC-MEC16-06	7.53	50.80	35.62	42.80	1 1/2-20UN	165(2400)	206(3000)
1″	1/2″ NPT	AC-MEC16-08	10.22	50.80	40.90	42.80	1 1/2-20UN	165(2400)	206(3000)
1″	3/4″ NPT	AC-MEC16-12	15.75	50.80	40.90	42.80	1 1/2-20UN	165(2400)	206(3000)
