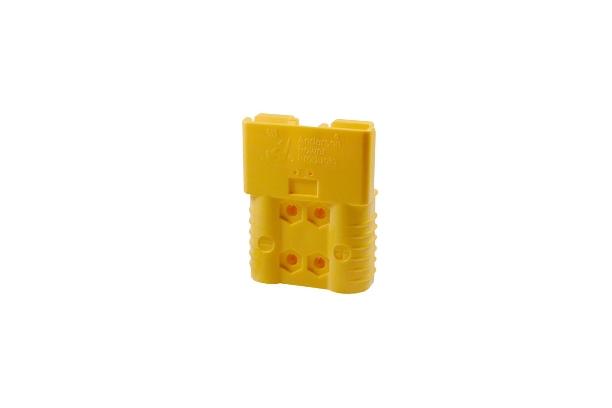

SBE® 160 MULTIPOLE CONNECTOR (UP TO 160 AMPS)
The innovative Anderson Power Products™ SBE® 160 connector provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
This Anderson Power Products™ SBE® 160 multipole connector is available with a 160 amp rating, 150 Volts continuous AC or DC operation. There is an Anderson Power Products™ SBE® 160 connector for many applications and wire sizes, 1/0 or 35 mm. Mechanical keys ensure that the Anderson SBE® 160 connector will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.
Features
- Finger Proofing
- Auxiliary Contacts Kits
- Optional Air Supply System
Benefits
- Helps prevent fingers (or probes) from accidentally touching live contacts. SBE® 160 connector meets EN1175 requirements.
- Provides ability to incorporate a secondary sensor control circuit
- Supplies air to battery during charging
Specifications
* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector
Mechanical Drawing
