|Product Name||Articulated robots|
|Catalog||IRB 460, data sheet.pdf PalletPack 460 data sheet.pdf ABB Robotics Product Range Brochure 2019, 4-pages.pdf|
High speed robotic palletizer.

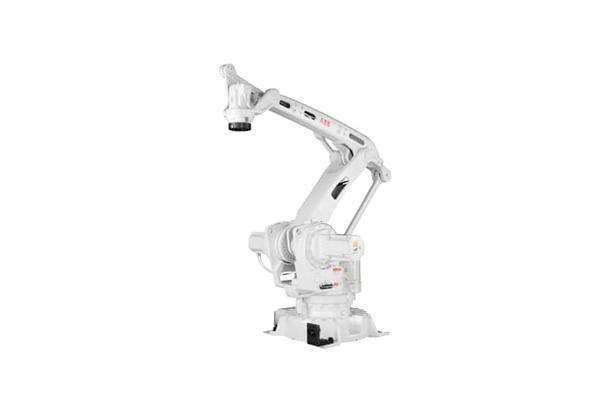

Leading ABB’s palletizing offering is the compact IRB 460 - the fastest palletizing robot in the world. The IRB 460 is perfect for end-of-line palletizing and bag palletizing applications. The 4-axis robot is the fastest of its kind and its small footprint makes it ideal for fitting into existing packing lines.
- Material handling
Shorter cycle times
The IRB 460 is the world’s fastest palletizing robot, capable of significantly shortening cycle times and raising productivity for end-of line and bag palletizing. With a reach of 2.4 meters and 110-kilogram payload capacity, this compact, four-axis robot can achieve up to 2,190 cycles per hour with a 60 kg load That’s 15 percent faster than its nearest rival.
High precision movements
Utilizing ABB’s patented motion control software, QuickMove™ and TrueMove™, the IRB 460 ensures palletizing is carried out with smooth movements and high path accurary. This means even the most sensitive products will be handled with great care without loosing cycle time.
Higher output from a smaller footprint
The compact design of the IRB 460 allows pallets to be placed 20 percent closer to the robot as compared with competitors’ robots with similar speeds and payloads. This factor alone can increase productivity by up to three percent.
Low cost of ownership and increased productivity
The robot’s robust and rigid design – manufactured to automotive industry standards – ensures high up time and low maintenance costs. The IRB 460 also features integrated process cabling which helps extend life and reduces wear. We also offer Robot Care, a three-year warranty package, that ensures worry-free operation of your robots at a fixed cost. This package includes the patented ABB wireless Remote Services, which enables ABB experts to monitor robots and suggest optimized maintenance to further increase productivity.
Faster, easier programming
The user-friendly software, Robot Studio with Palletizing Powe rPac – which runs on a regular PC – lets users who have no robot programming experience create programs and simulations; and design palletizing installations. The software is used to “configure” palletizing systems rather than program them and reduces programming time by up to 80 percent.
Unrivaled experience and global support
With more than 25 years of experience in the palletizing sector, ABB is a multinational corporation that has a sales and service organization in 53 countries and over 100 locations.
Complete palletizing solutions
By combining the IRB 460 high speed palletizer with the ABB FlexGripper - Claw and RobotStudio with Palletizing PowerPac you get the fastest robotic bag palletizing system in the world. With all elements working together path accuracy is optimized to ensure that your products will not only be handled very fast, but also with the utmost care. With an ABB robot solution palletizing will never be a bottle neck; either now or in the future.
NEW : Also available is the PalletPack 460 Function Package. This is a set of pre-engineered products configured for end-of-line palletizing that greatly improves ease of use for integrators. It is available for either high-speed bag palletizing or compact end-of-line case palletizing and consists of IRB 460 palletizing robot, IRC5 controller, Flex-Gripper (either the Claw or one-zone Clamp gripper), dressing kit, ABB PLC, Jokab Safety PLC, software, user documentation and FlexPendant with tailored graphical HMI.
Revolutionize robotics palletizing
- Palletizing is now more simple, faster and more efficient
