  • (주)유연

    3WAY CONTROL
    모델
    3CMC-1F
    시리즈
    컨트롤밸브

    제품 소개

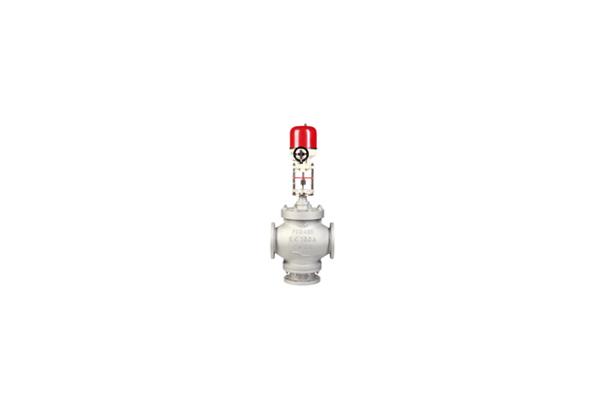

    CONTROL VALVE : 3CMC-1F


    - 선박 및 플랜트 주요시스템의 각종 유체의 온도, 압력, 유량 레벨 등을 제어하는 밸브입니다.

    - 정밀제어가 가능합니다.

    - 밸런스 타입으로써 차압변화가 거의 없습니다.





    SPECIFICATION


    항목

    내용

    TYPE

    Electric Motor

    Fluid

    Water , Steam, Oil, Liquid

    Meterial

    Body

    Carbon Steel , Stainless steel

    Trim

    Stainless steel

    Trim Characteristics

    Equal Percentage , Linear

    Design Pressure

    20kgf/cm2 Less than

    2.0 Mpa Less than

    Design temperature

    220︒C

    Connection Code

    JIS B2220 , ANSI B16.5, DIN2511 FLANGE

    Basic Accessory

    Positioner , Air set , Sensor , Manual Handle




    DIMENSION


    SIZE

    L

    H

    H1

    H2

    25A

    150

    115

    108

    494

    32A

    190

    133

    133

    494

    40A

    190

    133

    133

    494

    50A

    222

    179

    165

    554

    65A

    290

    200

    174

    554

    80A

    310

    209

    202

    638

    100A

    350

    232

    229

    638

    125A

    390

    266

    237

    772

    150A

    451

    292

    285

    772

    200A

    567

    340

    356

    978
