  • (주)유연

    LOW LIFT
    모델
    SFL-7S
    시리즈
    안전밸브

    제품 소개

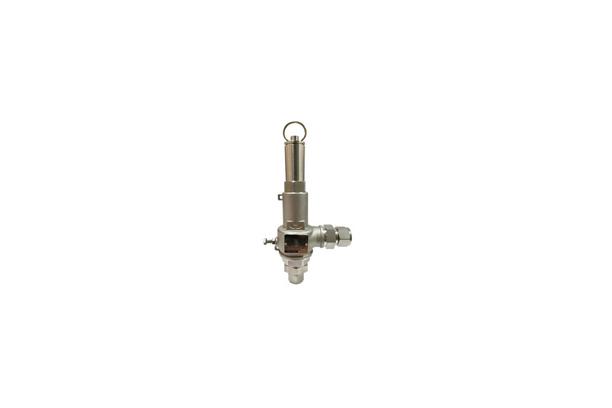

    SAFETY RELIEF VALVE : SFL-7S


    - LOK FITTING을 통해 TUBING 연결하는 Safety Valve입니다.

    - 비상 시 혹은 설정압력에 도달하지 않더라도 LEVER를 당겨 유체를 방출할 수 있는 구조입니다.

    - 안전보건공단의 검정을 필한 제품입니다.





    SPECIFICATION


    항목

    내용

    TYPE

    LOW LIFT

    Cap

    CLOSE LEVER CAP , PACKED LEVER , CLOSE CAP

    Material

    Body

    Stainless steel

    trim

    Stainless steel

    Design Pressure

    0.5 ~ 10.0kgf/cm2

    Design temperature

    50?C

    Connection

    LOK FITTING

    Fluid

    N2 / CDA

    Remark

    Electro Polishing





    DIMENSION (unit:mm)


    SIZE InXOut

    ?Dx?D1

    dt

    ds

    L

    L1

    H1

    H2

    H3

    H

    1/4" x 3/8"

    8 x 10

    10

    11

    28

    58

    26

    165

    -

    195

    3/8 x 3/8"

    10 x 10

    10

    11

    28

    58

    26

    165

    -

    195

    1/2" x 3/4"

    12 x 19.5

    20

    21

    38

    76

    42

    212

    193

    250

    3/4" x 3/4"

    19.5 x 19.5

    20

    21

    38

    76

    42

    212

    193

    250

    1" x 1"

    25.4 x 25.4

    25

    26

    43

    85

    48

    230

    207

    325
