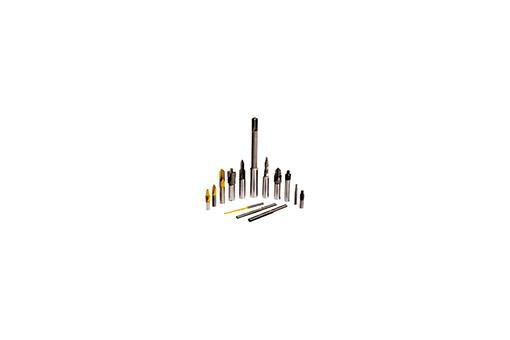

제품명 Special End Mills
모델명
시리즈 스페셜 툴
카탈로그
제품소개
모델번호
EDP NO.
인선직경(D)
Outside Diameter
볼반경(R)
Radius of Ball Nose
유효길이(L2)
Effective Length
날장(l1)
Flute Length
온길이 (L)
Overall Length
생크직경 (D)
Shank Diameter
나선
Helix
UREM(S)-201010GR 1.0 - 20 5 60 4.0 30
UREM(S)-202020GR 2.0 - 20 10 60 4.0 30
UREM(S)-202025GR 2.0 - 25 10 75 4.0 30
UREM(S)-203015GR 3.0 - 25 15 75 4.0 30
UREM(S)-203025GR 3.0 - 30 15 75 6.0 30
UREM(S)-204040GR 4.0 - 40 20 100 6.0 30
UREM(S)-201525GR 1.5 - 25 8 75 4.0 30
UREM(S)-203030GR 3.0 - - 15 75 4.0 30
URBM(S) - R 1.0 - 3 42 6.0 30
URBM(S) - R 1.25 - 3 42 6.0 30
URBM(S) - R 1.5 - 4 50 6.0 30
URBM(S) - R 1.75 - 4 50 6.0 30
URBM(S) - R 2.0 - 5 50 6.0 30
URBM(S) - R 2.25 - 5 50 6.0 30
URBM(S) - R 2.5 - 5 50 6.0 30

1 [2] [3] [4] [5]
