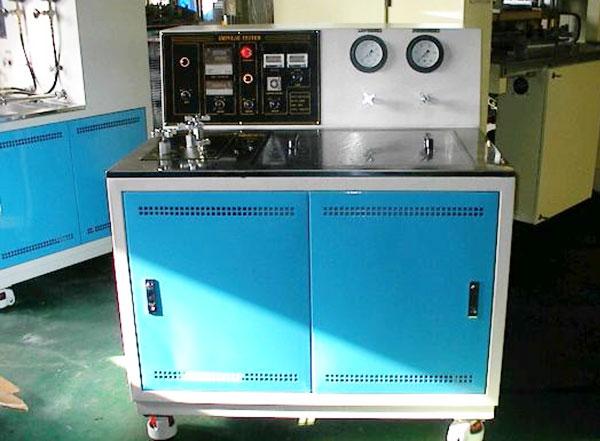

제품명 Impulse Test M/C (Passenger Type)
모델명 UOIT-30D
시리즈 Test Equipment
카탈로그
제품소개

TECHNICAL DESCRIPTION

ㆍPOWER SUPPLY : 220 VOLTS , 3Φ , 50/ 60 HZ

ㆍAPPLICABLE FILTER : AUTOMOTIVE OIL FILTER

ㆍTEST POINT : DURABLILTY & INTERNAL PRESSURE TEST

ㆍBODY SIZE : 1150 * 1000 * 1260MM (W*D*H)

ㆍBODY MATERIAL : STAINLESS STEEL 304 (PAINTING)

ㆍIMPULSE PRESSURE : 2 ~ 9 kgf/Union Tech Impulse Test M/C (Passenger Type) UOIT-30D

ㆍIMPULSE SPEED : 35 Cycle/ min(Max. 90 Cycle/ min)

ㆍUSING OIL : STANDARD ENGINE OIL

ㆍUSING OIL TEMP. RANGE : 0°C~80°C +3°C (MAX. 100°C)

ㆍMAX. PRESSURE : 35 kgf/Union Tech Impulse Test M/C (Passenger Type) UOIT-30D 1

ㆍOIL PUMP : VANE PUMP (40L/MIN)

ㆍMOTOR : 415 VOLTS , 3Φ , 3HP , 6P , 50HZ

ㆍPRESSURE GAUGE : 70KGf/Union Tech Impulse Test M/C (Passenger Type) UOIT-30D 2 , 100KGf/Union Tech Impulse Test M/C (Passenger Type) UOIT-30D 3

ㆍTEMP. CONTROL : P.I.D DIGITAL (S.C.R TYPE)

ㆍHEATER : 220V , 3KW

ㆍOIL TANK CAPACITY : 40L

APPLICATION

ㆍOIL FILTER OF PASSENGER CARS ARE TESTED OF IMPACT AND PRESSURE LIMIT UNDER THE SAME CONDITION LIKE AS MOUNTED ON THE AUTOMOTIVE ENGINE.

ㆍSTANDARD BY KSR 1040, PITCH OR AIR CYLINDER FIXED SYSTEM

OPTIONAL PART

ㆍAUTO FEEDING VIBRATION SYSTEM

ㆍSOL PUMP(DRUM TO TANK LOADING)
