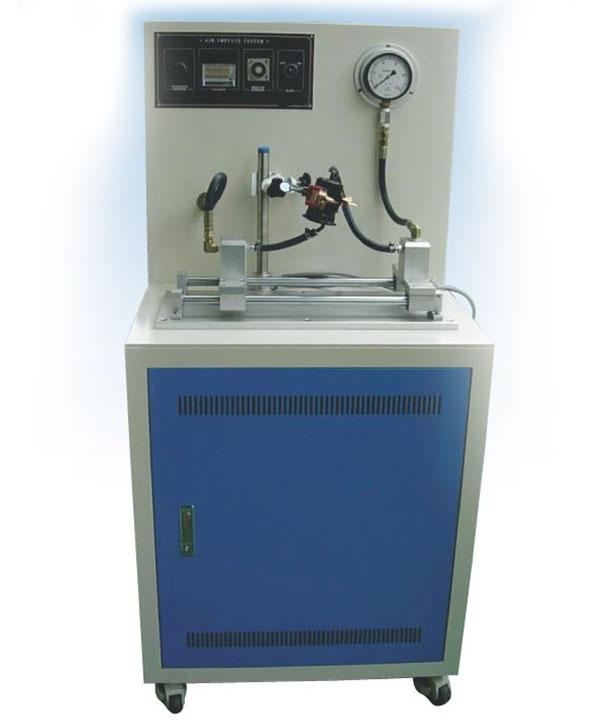

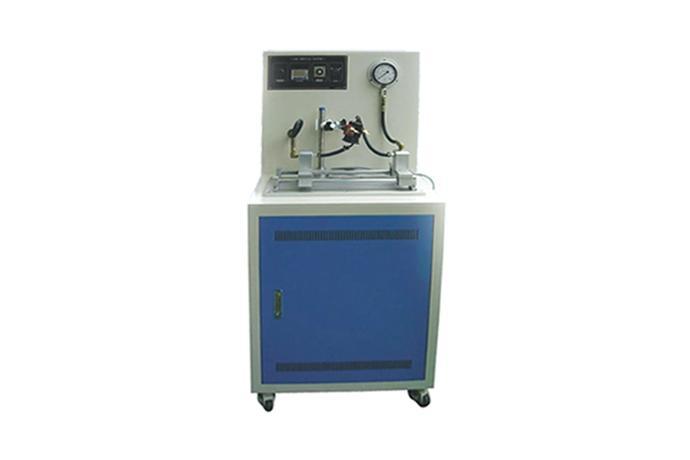

제품명 Air Impulse Test M/C (Passenger Type)
모델명 UAIT-15B
시리즈 Test Equipment
카탈로그
제품소개

TECHNICAL DESCRIPTION

ㆍPOWER SUPPLY : 220 VOLTS , 1 Φ , 50/ 60 HZ

ㆍAPPLICABLE FILTER : AUTOMOTIVE OIL/FUEL FILTER

ㆍTEST POINT : DURABLILTY & INTERNAL PRESSURE TEST(BY USING OF AIR)

ㆍBODY SIZE : 1000 * 1000 * 1450MM (W*D*H)

ㆍBODY MATERIAL : STAINLESS STEEL 304 (PAINTING)

ㆍIMPULSE PRESSURE(AIR) : 1 ~ 15 Bar(Max.)

ㆍIMPULSE SPEED : 30 Cycle/ min(Max. 60 Cycle/ min)

ㆍPRESSURE GAUGE : Φ 150 x 20KGf/Union Tech Air Impulse Test M/C (Passenger Type) UAIT-15B

ㆍTWIN TIMER(OMRON-JAPAN) : SPEED CONTROLLER

ㆍMAIN. PRESSURE : Over 6 kgf/Union Tech Air Impulse Test M/C (Passenger Type) UAIT-15B 1

ㆍIMPULSE COUNTER : DIGITAL

ㆍCASTER WHEEL : GD60(4EA)

ㆍAIR PRESSURE REGULATOR : 0~20KGf/Union Tech Air Impulse Test M/C (Passenger Type) UAIT-15B 2

ㆍN.F.B : 220 VOLTS, 1Φ , 30A

ㆍAIR REGULATOR : 10 kgf/Union Tech Air Impulse Test M/C (Passenger Type) UAIT-15B 3

ㆍSAFETY COVER : ACRYL

ㆍHI PRESSURE BOOSTER : 20 Bar(Haskel)

ㆍHI PRESSURE TANK : 10L

ㆍSOLINOID VALVE : 220V, 20KGf/Union Tech Air Impulse Test M/C (Passenger Type) UAIT-15B 4

APPLICATION

ㆍOIL/FUEL FILTER OF PASSENGER CARS ARE TESTED OF IMPACT AND PRESSURE LIMIT UNDER THE SAME CONDITION LIKE AS MOUNTED ON THE AUTOMOTIVE ENGINE.BUT, USE BY AIR PRESSURE INSTEAD OF STANDARD ENGINE OIL USING.
