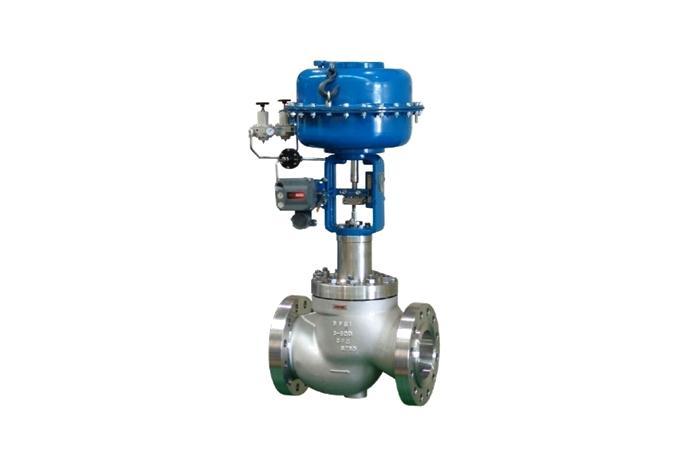

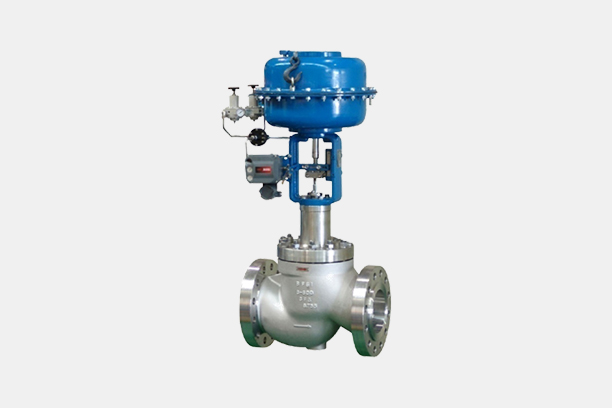

UNIFLO Control Valves provided superior performance in demanding control and tight shut-off process, and used for either throttle or on-off control of a wide variety of power plant, Gas & Oil, Water, Steam,. etc. includes high flow capacity & pressure drops, low noise, reduced maintains.
| Size | 1/2″ to 24″(DN15 … DN600) |
|---|---|
| Rating | ANSI 150Lb to 2500Lb JIS 10K to 63K PN10 to PN450 |
| Leakage | FCI 70-2 Standard : ANSI Class IV Option : ANSI Class V |
| Press. Range | up to 6,170 psi(g) up to 434kgf/cm2 |
| Temp. Range | -150˚F to +1,050˚F / -100˚C to +565˚C Option : -320˚F to +1,562˚F / -196˚C to +850˚C |
| Materials | Carbon steel(WCB,WCC), Stainless steel(CF8, CF8M, CF3, CF3M), Chrome-moly(WC6,WC9,C12A), other alloys |
| End Connections | NPT(BSFF), RF/FF/RTJ Flanged, Socket weld, Butt weld |
| Actuators | Spring-diaphragm, Cylinder, Motorized, Electro-Hydraulic |
| Applications | Low Pressure Steam & Water, General Services, Flash Tank, Fuel Gas, Condensate Recirculation, Superheater and Reheat Spray, Desuperheater Water Spray, Gland Steam Pressure, Soot Blower, Steam Pressure, Auxiliary Steam, Boiler Feedwater, Deaerator Pegging Steam, Deaerator Level Control, Turbinebypass(HP/LP) |
Trim Type : Single Port, Conventional Cage, Single Stage, Multi Stage, Disc Stack
UNIFLO Products incorporate the unique sealing & seating principle which is ideally suited for difficult process application including high cycle & temperature, ultra-cryogenic, high abrasive media, slurries ,.etc
| No | Parts Description |
|---|---|
| 1 | Body |
| 2 | Bonnet |
| 3 | Body Stud |
| 4 | Body Nut |
| 5 | Plug |
| 6 | Seatring |
| 7 | Window Cage |
| 7-1 | Balance Cylinder |
| 8 | Stem |
| 9 | Plug-Stem |
| 10 | Spacer |
| 11 | Balance Ring |
| 16 | Bonnet Gasket |
| 17 | Seatring Gasket |
| 18 | Packing |
| 20 | Packing Follower Bolt |
| 21 | Packing Follower Nut |
| 22 | Packing Flange |
| 23 | Packing Follower |
The body designs of UNIFLO Angle Control have bolted bonnet, over sizing stem & yoke type and also, trim designs have single port, conventional cage, single stage, multi stage type.
| Size | 1/2″ to 8″(DN15 … DN200) |
|---|---|
| Rating | ANSI 150Lb to 2500Lb JIS 10K to 63K PN10 to PN64 |
| Leakage | FCI 70-2 Standard : ANSI Class IV Option : ANSI Class V / ANSI Class VI (Soft) |
| Cv Range | 0.1 to 860 |
| Press. Range | up to 1,480 psi(g) up to 104kgf/cm2 |
| Temp. Range | -150˚F to +1,050˚F / -100˚C to +565˚C Option : -320˚F to +1,562˚F / -196˚C to +850˚C |
| Materials | Carbon steel(WCB,WCC), Stainless steel(CF8, CF8M, CF3, CF3M), Chrome-moly(WC6,WC9,C12A), other alloys |
| End Connections | NPT(BSFF), RF/FF/RTJ Flanged, Socket weld, Butt weld |
| Actuators | Spring-diaphragm, Cylinder, Motorized, Electro-Hydraulic |
| Applications | Low Pressure Steam & Water, General Services, Flash Tank, Fuel Gas, Condensate Recirculation, Superheater and Reheat Spray, Desuperheater Water Spray, Gland Steam Pressure, Soot Blower, Steam Pressure, Auxiliary Steam |
