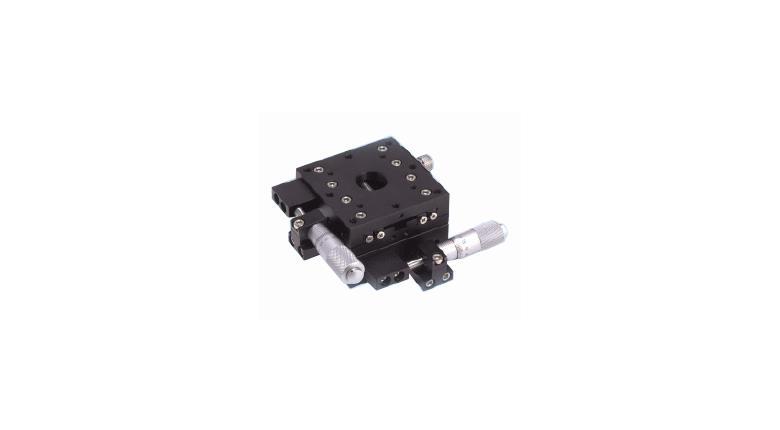

| 호칭형번 | Part number | MSXY-40L | MSXY-40R | MSXY-40C |
| 마이크로미터 위치 | Micrometer position | 좌 Left | 우 Right | 중앙 Center |
| 스테이지면 크기 | Size of stage face | 40X40mm | ||
| 이동거리 | Travel distance | ±6.5mm | ||
| 이동 가이드 | Travel guide | Crossroller Guide | ||
| 내하중 | Load capacity | 1.0kgf | ||
| 평행도 | Degree of parallelization | 0.05mm | ||
| 주행평행도 | Parallelism of motion | 0.02mm | ||
| 무게 | Weight | 0.2kg | ||
| 재질 | Material | Aluminum | ||
| 후처리 | Surface finishing | Black Anodized | ||

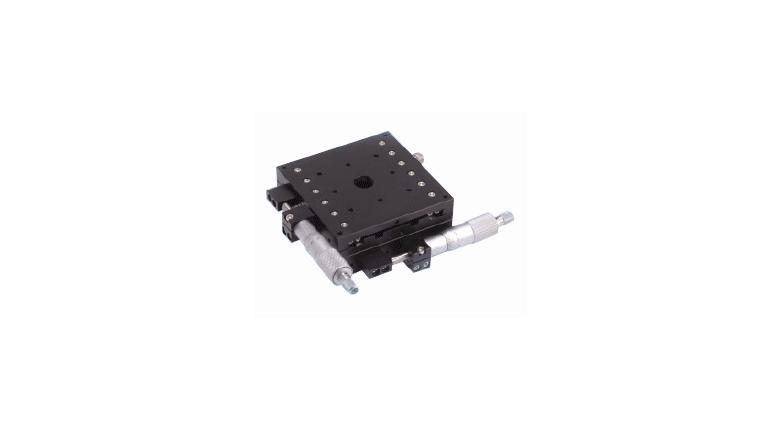

| 호칭형번 | Part number | MSXY-60L | MSXY-60R | MSXY-60C |
| 마이크로미터 위치 | Micrometer position | 좌 Left | 우 Right | 중앙 Center |
| 스테이지면 크기 | Size of stage face | 60X60mm | ||
| 이동거리 | Travel distance | ±6.5mm | ||
| 이동 가이드 | Travel guide | Crossroller Guide | ||
| 내하중 | Load capacity | 3.0kgf | ||
| 평행도 | Degree of parallelization | 0.05mm | ||
| 주행평행도 | Parallelism of motion | 0.02mm | ||
| 무게 | Weight | 0.4kg | ||
| 재질 | Material | Aluminum | ||
| 후처리 | Surface finishing | Black Anodized | ||



| 호칭형번 | Part number | MSXY-80L | MSXY-80R | MSXY-80C |
| 마이크로미터 위치 | Micrometer position | 좌 Left | 우 Right | 중앙 Center |
| 스테이지면 크기 | Size of stage face | 80X80mm | ||
| 이동거리 | Travel distance | ±12.5mm | ||
| 이동 가이드 | Travel guide | Crossroller Guide | ||
| 내하중 | Load capacity | 4.0kgf | ||
| 평행도 | Degree of parallelization | 0.05mm | ||
| 주행평행도 | Parallelism of motion | 0.02mm | ||
| 무게 | Weight | 0.7kg | ||
| 재질 | Material | Aluminum | ||
| 후처리 | Surface finishing | Black Anodized | ||



| 호칭형번 | Part number | MSXY-100L | MSXY-100R | MSXY-100C |
| 마이크로미터 위치 | Micrometer position | 좌 Left | 우 Right | 중앙 Center |
| 스테이지면 크기 | Size of stage face | 100X100mm | ||
| 이동거리 | Travel distance | ±12.5mm | ||
| 이동 가이드 | Travel guide | Crossroller Guide | ||
| 내하중 | Load capacity | 4.0kgf | ||
| 평행도 | Degree of parallelization | 0.05mm | ||
| 주행평행도 | Parallelism of motion | 0.02mm | ||
| 무게 | Weight | 1.08kg | ||
| 재질 | Material | Aluminum | ||
| 후처리 | Surface finishing | Black Anodized | ||
