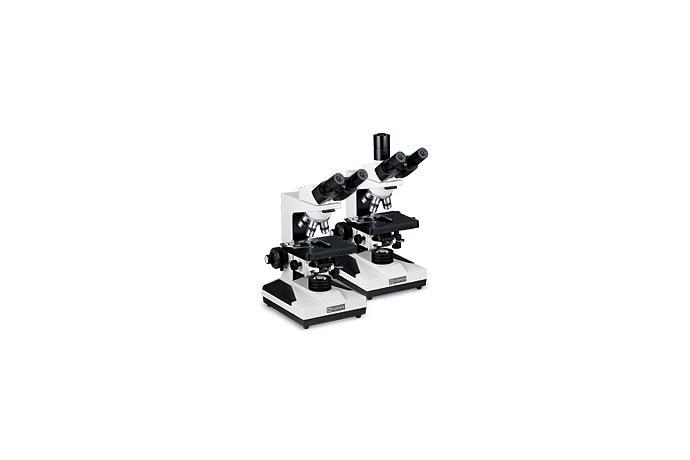

TBL-150B

Head

Binocular

360°rotating head,30°slope

Width adjustment(55~75mm)

Total Magnification

40X~1500X

Eyepieces

WF10X, WF15X(each one pair)

Objectives

Ach 4X, 10X, S40X, S100X oil

Nosepiece

Inward quardruple nosepiece

Focus adjustment

Coarse/Fine integration

Mechanical stage

Stage size 160x140mm, M/S moving distance 70x50mm

Condenser

Abbe condenser(N.A. 1.25)with Iris, Filter holder

Illumination

6V/15W halogen lamp

Power source

AC 220V/60Hz

Filter

Blue, Green, Grey(each one)

One spear halogen lamp
