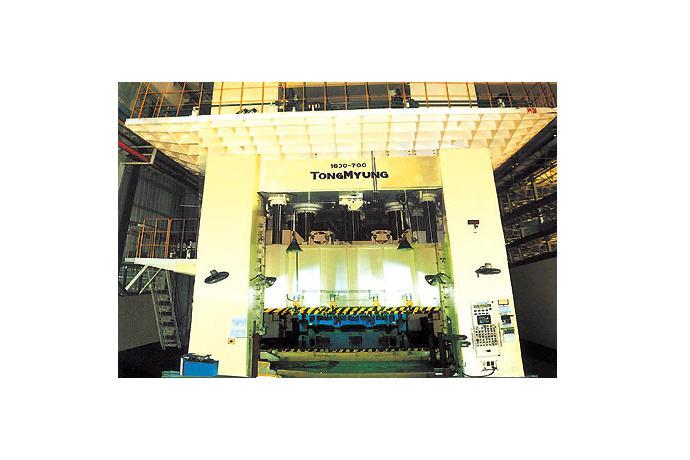

High Speed Double Action Press

모델명

시리즈

유압식 Press


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


055-256-3671

제품 상세 설명

*구조 및 특징

1. HIGH SPEED DOUBLE ACTION PRESS는 SINGLE ACTION PRESS로 작업하기 어려운 공정에 사용됩니다.
2. 각각의 구동 실린더는 당사 특유의 유압회로에 의하여 조정되기 때문에 작업 CYCLE TIME을 최소화
   할 수 있습니다.
3. 견고한 FRAME 구조로 설계되어 있어 정확한 작동을 위해 필수적인 FRAME의 변형을 최소화 할 수
   있습니다.
4. PUSH BUTTON, SELECTOR SWITCH, ADJUSTMENT VALVE는 사용자의 편의를 도모하기 위해 프레스
   정면의 CONTROL PANEL 내부에 장착됩니다.

*FEATURES

1. High speed double action presses are particulary suitable for deep drawing where a single action press
    would be impractical.
2. The cycle time is minimized because each action can be controlled sperately by means of a special
    hydraulic circuit.
3. The soild frame construction provides rigidity and maximum resistance to reflection that is essential to
    accurate performance.
4. The push buttons, selector switches, meter and adjustment valves necessary for the operation are
    grouped in a compact control panel mounted on the front in a compact control panel mounted on the
    front of the press for convenience. The precise and safe operation is accomplished by using the
    selector switches depending upon the operation desired.

*DIEENSION & SPECIFICATION

동명산업기계 High Speed Double Action Press 2300T Series 1
• 상기표는 표준형입니다. 표준형 이외의 제품에 대해서는 별도 당사로 문의하여 주시기 바랍니다.
