Description

The majority of educational milling machine in high schools, colleges of South KOREA is this machine.

More than any other competitor’s.

Article

UNIT

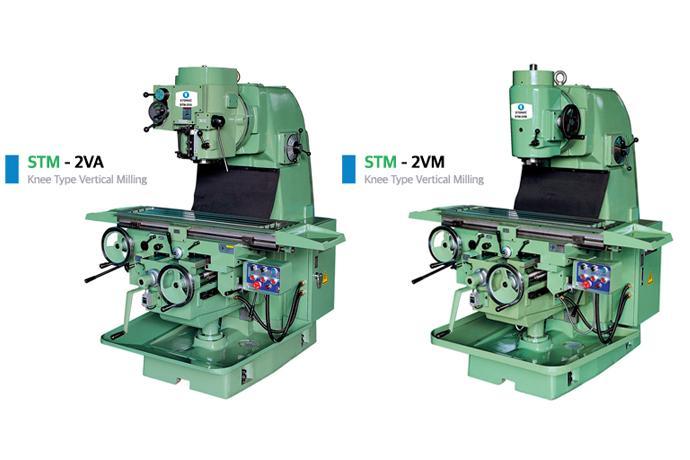

STM 2VA

STM 2VM

Table

Working Surface (L×W)

mm

1,100×290

1,100×290

T-Slots (Width×Number)

mm

16×3

16×3

Max Travel (Longitudinal)

mm

820 (O.T)

820 (O.T)

Max Travel (Cross)

mm

300 (O.T)

300 (O.T)

Max Travel (Vertical)

mm

450 (O.T)

450 (O.T)

Feeds/min (Longitudinal)

mm/min

15~720

15~720

Feeds/min (Cross)

mm/min

15~720

15~720

Rapid Feed/min (Long, Cross)

mm/min

3,000

3,000

Rapid Feed/min (Vertical)

mm/min

800

800

Table Load (Max)

kg

250

250

Spindle

Taper of Spindle Bore

N.T

50

50

Number of Spindle Speeds

step

9

9

Range of Spindle Speeds

r.p.m

90~1,400

90~1,400

Quill Power Feeds (1/Rev)

m/rev

0.03, 0.06, 0.12

-

Vertical Spindle Travel

mm

90

90

Head Tilting Angle

Deg

±45∘

±45∘

Motor

Main Spindle Motor

kw

3.75(5HP), 4P

3.7(5HP), 4P

Long & Cross Feed Motor

kw

1.5(2HP), 4P

1.5(2HP), 4P

Vertical Rapid Motor

kw

1.1(1.5), 6P

1.1(1.5), 6P

Coolant Pump Motor

w

100, 2P

100, 2P

Floor Space (W×L)

mm

3,000×2,000

3,000×2,000

Net Weight

kg

2,300

2,300
