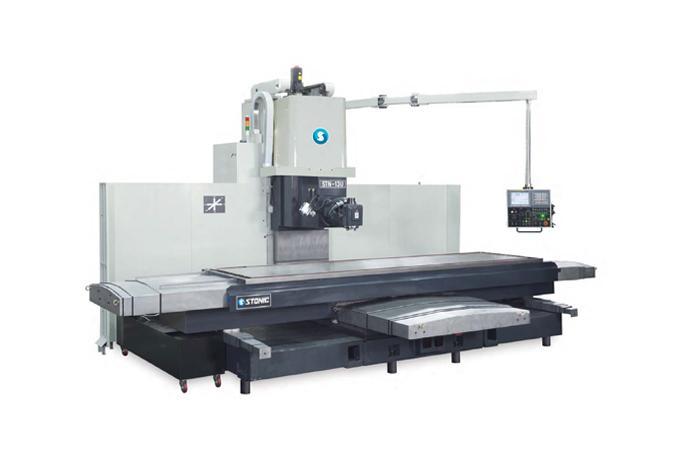

STN-13U

STN-12U

STN-10U

STN-8U

Table

Working Surface (L×W)

4,200×1,100 mm

3,800×905 mm

3,800×805 mm

3,800×805 mm

T-Slots (Width×Number)

8X20 mm

8X20 mm

7X20 mm

7X20 mm

Max Travel (Longitudinal)

4,000 (O.T) mm

3,400 (O.T) mm

3,200 (O.T) mm

3,100 (O.T) mm

Max Travel (Cross)

1,300 (O.T) mm

1,250 (O.T) mm

1,050 (O.T) mm

850 (O.T) mm

Max Travel (Vertical)

1,250 (O.T) mm

1,200 (O.T) mm

1,000 (O.T) mm

850 (O.T) mm

Number of Feeds

no step

Feeds/min (Longitudinal, Cross)

0~3,000 mm/min

Rapid Feed/min (Vertical)

0~3,000 mm/min

Rapid Feed/min (Longitudinal, Cross)

Max. 8,000 mm

Max. 8,000 mm

Max. 10,000 mm

Max. 10,000 mm

Rapid Feed/min (Vertical)

Max. 8,000 mm

Max. 8,000 mm

Max. 10,000 mm

Max. 10,000 mm

Spindle

Spindle Nose

#50 (NT #50 : Option) B.T

Number of Speeds

Hi,low 2 steps

Speeds

(L:0~750, H751~2,500 : NC) r.p.m

Spindle Center to Column

1,300 mm

1,250 mm

1,100 mm

900 mm

Motor

Spindle Drive Motor

15 kw

Feed Drive Motor

SERVO MOTOR : X.Y.Z (4) kw

Coolant Pump Motor

180 w

X, Y, Z SCREW

XZ(6310), Y(80)

X(6310), YZ(5010)

XZ(5010), Y(4010)

C.N.C CONTROLLER

SIEMENS 810D / FANUC Oi-MC

Table Load

4,000 kg

Electrical Power

380V, 3∅ (50kVA) / 220V, 3∅ (50kVA) FANUC (380, included TR)
