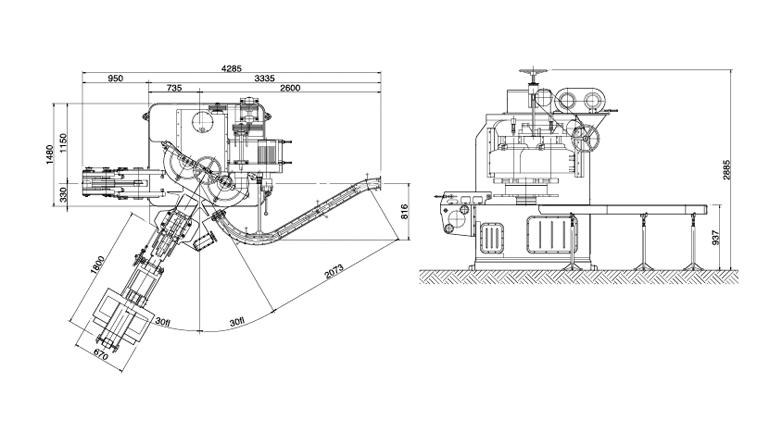

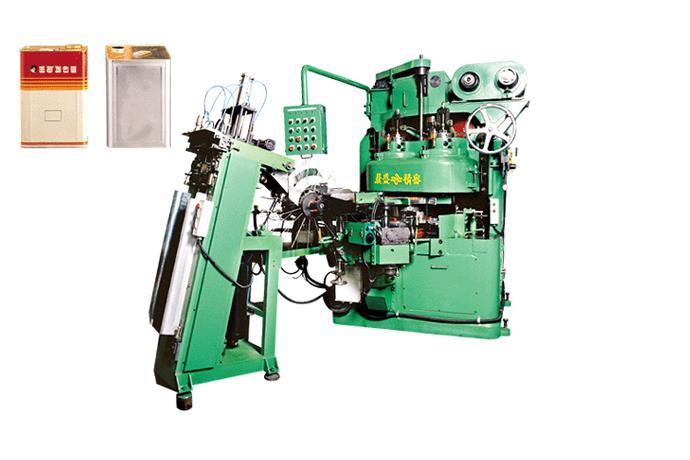

AUTO DOUBLE HEAD SEAMER

  CAPACITY PER MINUTE

  50 CANS/MIN.

  RANGE OF CAN DIA

  MAX. 320 M/M DIAGONAL

  RANGE OF CAN HEIGHT

  300-400 M/M

  HORSE POWER REQUIRED

  11.2 KW, 0.2 KW

  NET WEIGHT (APPROX.)

  7500 KG

  OVER ALL HEIGHT

  2885 MM

  NUMBER OF SEAMING ROLL

  6 ROLLS/HEAD

  FLOOR SPACE

  2200 X 1750 MM

  SIZE OF BASE

  1840 X 1480 MM

ESCALATOR

  HORSE POWER REQUIRED

  0.75 KW, 0.4 KW

  FLOOR SPACE

  850 X 1400 MM

  OVER ALL HEIGHT

  2300 MM

  NET WEIGHT

  600 KG (APPROX.)
