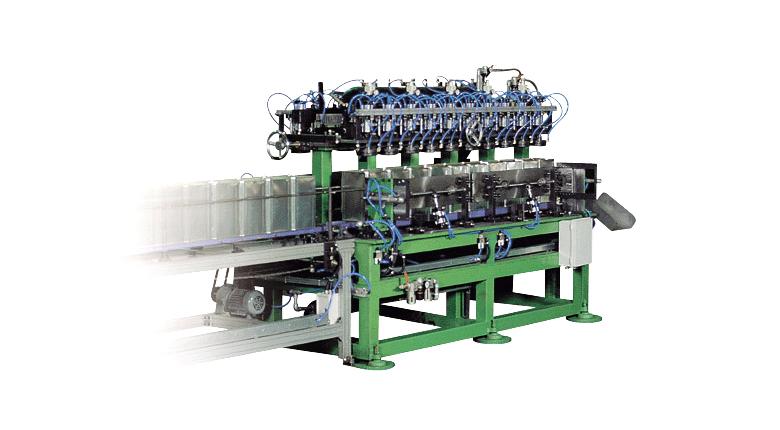

AIR TESTER : SSC-AT100
LAYOUT
SPECIFICATIONS
AIR TESTER | |
CAPACITY | 30~100 CANS/MIN |
POCKET NUMBER | 30 POCKETS |
DETECTABLE MIN. HOLE | Ø 0.3 MM |
HORSE POWER REQUIRED | 3.75 KW |
COMPRESSED AIR | 5 KG / CM2 |
FLOOR SPACE | 2300 X 2870 MM |
HEIGHT OVER ALL | 2000 MM |
CAN SIZE | 1L ~ 18L (IRREGULAR CAN) |
AIR TESTER : AT50
LAYOUT
SPECIFICATIONS
LEAKAGE TESTER | |
CAPACITY PER MINUT | 30~50 CANS/MIN. |
THE NUMBER OF TEST HEAD | 20 HEADS |
DETECTIVE MIN. HOLE | Ø0.3 MM |
HORSE POWER REQUIRED | 1.5 KW |
FLOOR SPACE | 1340 X 7100 MM |
HEIGHT OVER ALL | 1900 MM |
NET WEIGHT | APPROX. 4000KG |
FEATURES
* COMPETITIVE PRICE AND GOOD QUALITY
* VARIOUS SQUARE CAN HEIGHT SIZE AND CONVENIENCE : NO MATTER WHERE SPOUT IS, EASILY CHECK AIR PRESSURE
WITH VARIOUS CAN HEIGHT SIZES BETWEEN 250 MM AND 400 MM
* PROTECT CAN : BLOCKING THE ALL FOUR SIDES OF CAN, MINIMIZE TRANSFORM OF CAN.
* HORIZONTAL TYPE : MINIMIZE SPACE OF WORK INSTEAD OF USING ROUND TYPE.
* HIGH TECH SENSOR : IT WILL UPGRADE QUALITY OF CAN
* PLC CONTROL
