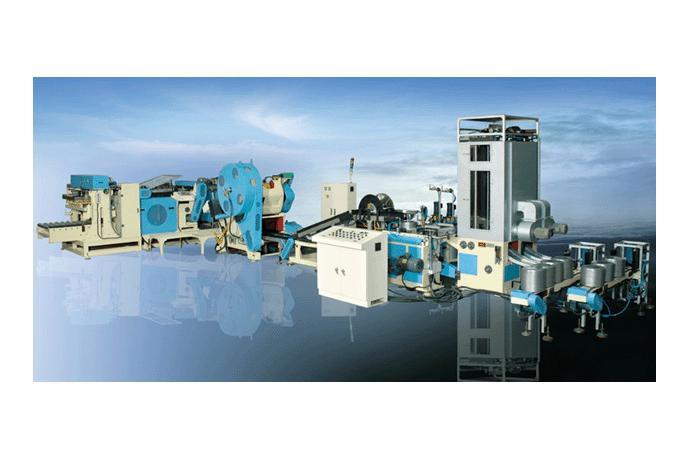

    20L Pail Can End Making Line
    모델
    -
    시리즈
    20L Pail Can Body & End Making Line

    제품 소개

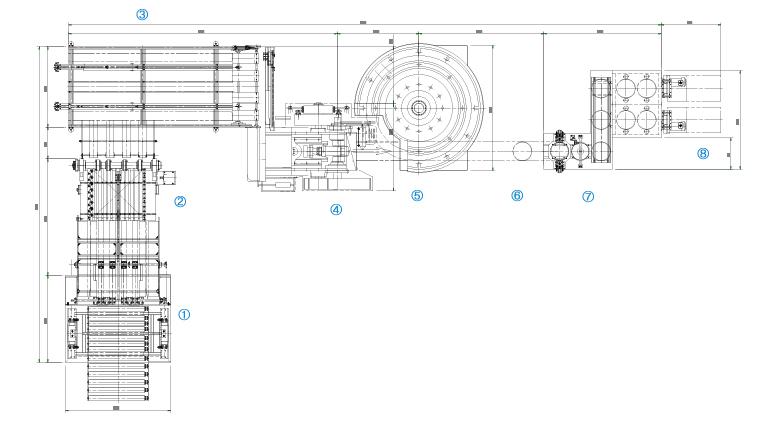

    SPECIFICATIONS

    (1) AUTO SHEET FEEDER

      MODEL

      SS-01

      CAPACITY

      25~30 SHEETS/MIN

      SHEET THICKNESS

      MAX. T=0.4

      MAX. LOADING WEIGHT

      2 TON

      HORSE POWER REQUIRED

      3.75 KW

      VACUUM PUMP

      2 HP X 4P 600L/MIN

      MACHINERY WEIGHT

      1500 KG

      FLOOR SPACE

      1670 X 2000 MM

      HEIGHT OVER ALL

      1935 MM

      DOUBLE SHEET DETACTOR

      1 SET

      MAX.SHEET SIZE

      1060 X 1060 MM

      SEPARATING MAGNET

      2 EA



    (2) GANG SLITTER

      MODEL

      SS-08

      CAPACITY

      30~35 SHEETS/MIN

      CUTTER DIA

      7" DIA, SKD 11

      CUTTING SPEED

      1036 MM/SEC

      CUTTER MOTOR

      0.75 KW X 4P X 1/10 GEARED MOTOR

      SIDE GAUGE

      1 SET

      NUMBER OF CUTTER

      2 SETS

      MACHINERY WEIGHT

      1000 KG (APPROX.)

      FLOOR SPACE

      1200 X 700 MM

      HEIGHT OVER ALL

      1250 MM



    (3) BLANK FEED TABLE

      HORSE POWER REQUIRED

      2.2 KW

      FLOOR SPACE

      2000 X 1600 MM

      HEIGHT OVER ALL

      1240 MM



    (4) AUTO STRIP FEED PRESS

      MODEL

      SS-09-75

      CRANK POWER PRESS

      -

      COMBINATION AIR CLUTCH &
      BRAKE SYSTEM

      -

      CAPACITY

      50 ENDS/MIN

      RANGE OF CAN DIA

      20L PAIL CAN

      HORSE POWER REQUIRED

      5.6 KW

      FLOOR SPACE

      1950 X 1400 MM

      HEIGHT OVER ALL

      2265 MM

      WITH BLANK FEEDING EQUIPMENT & SCRAP
      DISCHARGE



      COMPRESSED AIR

      5 KG/CM



    (5) DISK CURLING M/C

      CAPACITY

      50 ENDS/MIN

      RANGE OF CAN DIA

      20L PAIL CAN

      HORSE POWER REQUIRED

      1.5 KW

      FLOOR SPACE

      2000 X 2000 MM

      HEIGHT OVER ALL

      650 MM



    (6) CONNECTION CONVEYOR

      PULLY BELT CONVEYOR



      BELT WIDTH

      250 MM

      HORSE POWER REQUIRED

      0.75 KW

      BELT SPEED

      50 M/MIN



    (7) LINER & DRYER OVEN

      CAPACITY

      50 ENDS/MIN

      HORSE POWER REQUIRED

      3.75 KW

      COMPOUND DRUM

      1 SET

      DRYER TEMPERATURE CONTROL TYPE

      BY THERMISTOR

      THE FUEL OF USE

      ELECTRICITY

      FAN MOTOR

      0.4 KW X 2

      ELECTRIC HEATER

      20 KW X 2

      FLOOR SPACE

      1865 X 1570 MM

      HEIGHT OVER ALL

      2452 MM

      COMPRESSED AIR

      5 KG/CM



    (8) STACKER

      HORSE POWER REQUIRED

      0.75 KW
