Column Rotational

모델명

시리즈

FMTS (Floor Mounted Tube Stand)


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


02-3423-3057

제품 상세 설명

­

Product Description

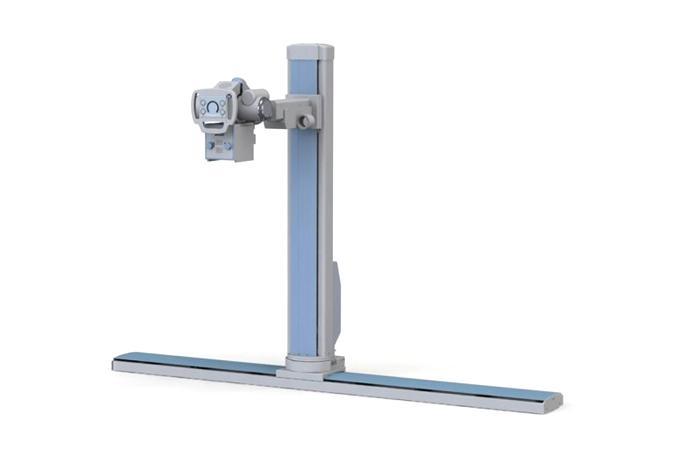

The Floor Mounted Tube Stand (FMTS) is the ideal choice for a complete range of routine radiographic procedures, while keeping an eye on your budget by eliminating costly structural modifications.
Requires only a low profile floor-mounted rail for support, eliminating the need for costly modifications to the ceiling or walls of your radiographic room. Allows installation in a room with a ceiling height as low as 85″ (215 cm).
Extensive, smooth longitudinal and transverse travel assures complete radiographic coverage.

Specifications data
Manual Movement

1) Vertical /Horizontal travel with electric magnet brake

2) Tube Rotation: ±135°

3) Tube Arm Slide In/Out movement: ±120 mm (±4.7 in.)

4) Column Rotation: ±90°

Vertical Travel 1,490 mm (58.7 in.)
Longitudinal Travel 2,540 mm (100 in.)
Power Requirement 24VDC, 3A
Certification UL

-Specifications subject to change without notice.

자료 다운로드

SS-2000[2011.12.19최신]
