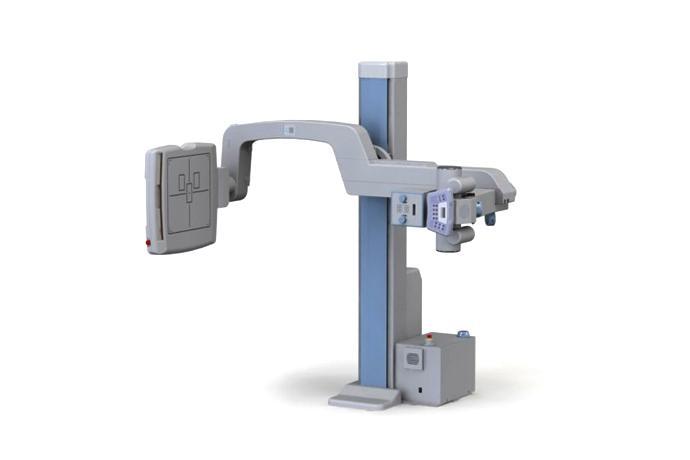

SU-500x FPD U-Arm stand is X-Ray tube, collimator and bucky support subsystem integrated into a radiographic system. It has been designed and developed for various X-Ray examination techniques using flat panel detectors in small area.
| Specifications | data |
|---|---|
| Dual-Speed Motorized Movement | 1) Source to Image Distance (SID) 2) Arm Elevating Movement 3) Rotation of Arm & Tube 4) Rotation of Bucky |
| Source to Image | 1000~1800mm (39.5~71 in.(Continuously Adjustable) |
| Vertical Travel | Max. 1200mm (47.2 in.) |
| Arm Rotation Angle | -30° ~ 120 ° |
| Tube Rotation | ±90° |
| Detector Rotation | ±45° |
| Power Requirement | 120VAC or 200~240VAC, 50/60Hz, 1000VA |
| Operation | Remote Control with Exam Specific Presets |
| Certification | UL, CE |
| Options | Bucky, Touch panel console |
-Specifications subject to change without notice.
