Dual Flow Divider Valve

모델명

시리즈

기타 밸브


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


062-954-0951

제품 상세 설명

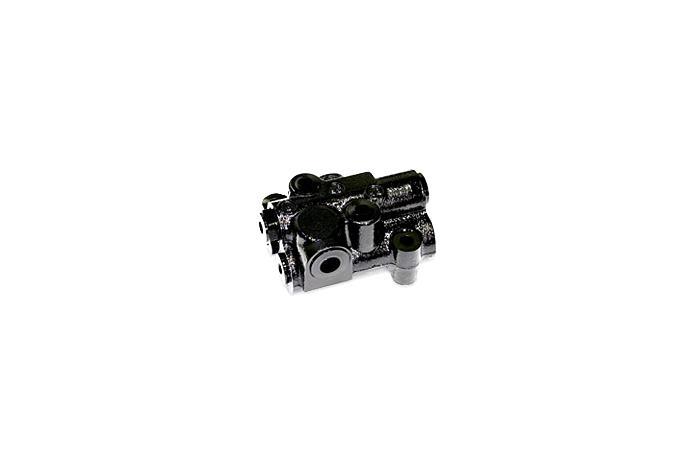

Shinjin Precision Dual Flow Divider Valve

Flow control and priority valve is combined as a one part: The Dual Flow Divider. The flow control part handles the flow for the vehicle braking control.
The priority valve part controls the flow and pressure of the Power Steering Unit. It is compact and cost effective solution for small off-road vehicles.


Specifications

Max. Flow : 85 lpm
Control Flow for Brake : 3.0 ~4.5 lpm
Relief Pressure : 120 bar at 25 lpm
Control Pressure : 10.5 bar
Steering System :

Internal Pilot, Dynamic Signal Type
