Specifications
- Size: 950(W)mm×1400(D)mm×1700(H)mm
- Inner Chamber Size: 300 600L
- Temperature: 50。C 2。C
- Using Pressure: MAX 6kg/cm
- Applied to : LCD Panel 4" or 6" (2 stages structure)
- Equiping Electromotive Clutch Looking
- Inserting Silicon Gasket and Sealing Tight
- Heating: By a Silico Fan


Product Features

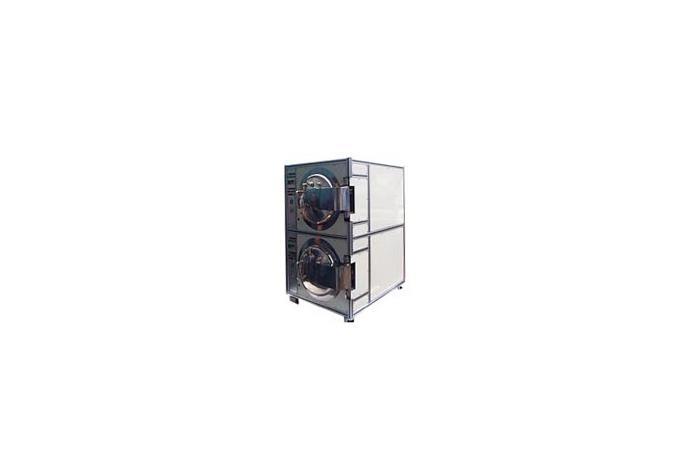

This equipment is to give a certain pressure and heat to the LCD cells to remove air bubbles between cell and polarized plate, to enhance the adhesion of the polarized plate.
It keeps the temperature equally since it employes forced heat circulation.
Also the equipment is easy to use since it automatically runs.
