Aluminum & Steel

• Non driving rail system for less cost and maintenance free for major components including trolley

• Trolley is totally protected by steel formed track

• Easy for expansion and modification of existing Line

• Comfortable and easy for operation and noise free during travelling

• Offering flexibility against building obstruction

• Simple, fast and safe installation than conventional welding construction

• Standard fittings save cost, esasy and fast dismantle for relocation, reusable all parts

• Ranges of product 50-2,000kg depending on configuration. curved Track is another attractive advantage

• Suitable for building power supply air system and transportation of various tools for assembly line application.





---

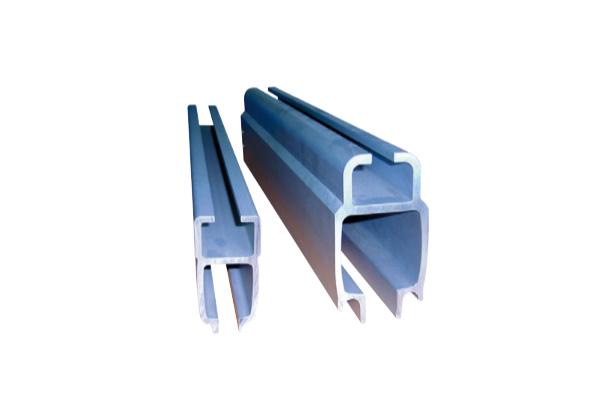

Aluminum Track

1) KTA Track		MAX SPAN (m) Model / kg 150 250 350 500 1,000 KTA-I 2.4 1.9 1.6 1.3   KTA-II     3.3 2.8 1.8   Track Weight (kg/m) KTA-I KTA-II 5.66 11.8
7) End oap with buffer	25) Upper suspension Bracket Ass'y	55) Trolley	75) Crane Sus. Eye

---

Steel Track

MAX SPAN (m) Model / kg 80 125 250 500 1,000 KH-100 2.5 2.0       KH-I 4.1 3.3 2.3 1.3   KH-II L   7.3 5.2 3.5 2.1 KH-II     7.3 5.2 3.3   Track Weight (kg/m)   KH-100 KH-I KH-IIL KH-II KH-IIS 1M 4.1 6.4 13.2 17 18.7

1) KTS TRACK
7) End oap with buffer	89) Attachment	20) Track Switch
25) Upper suspension Bracket Ass'y	55) Trolley	55-1) 3 Wheel Trolley
83) Cable Clamp	75) Crane Sus.Eye	87) Cable Trolley (Steel/Plastic)
