제품 상세 설명

General purpose Heat Shrinkable Tube fof Insulation, Protection and Harnessing

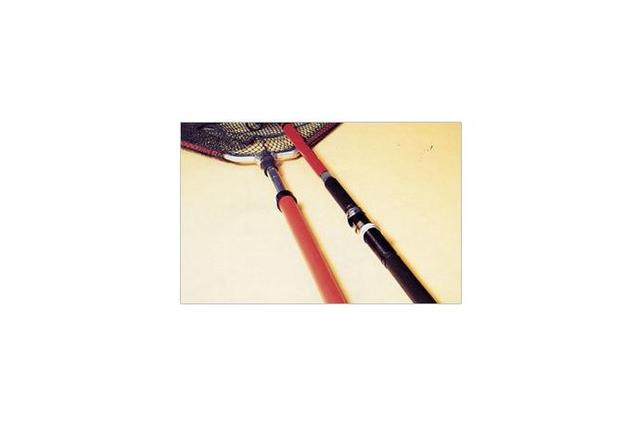

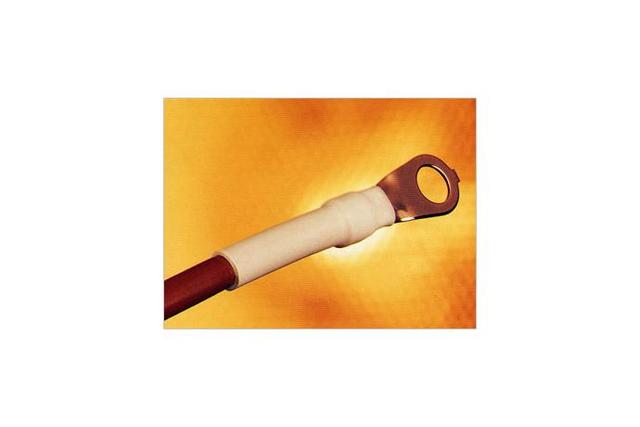

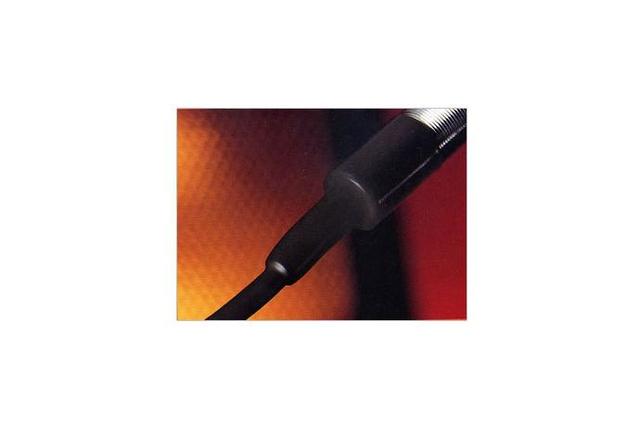

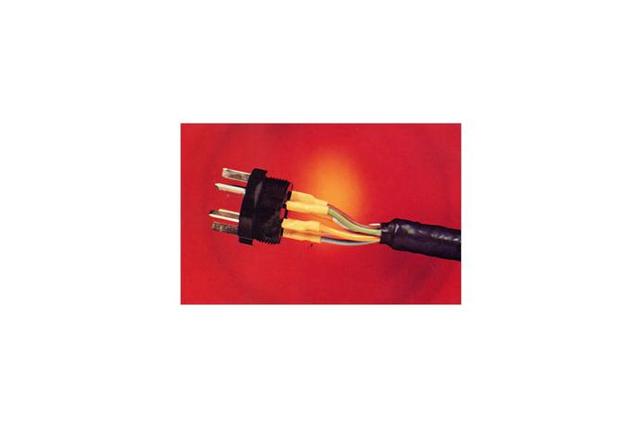

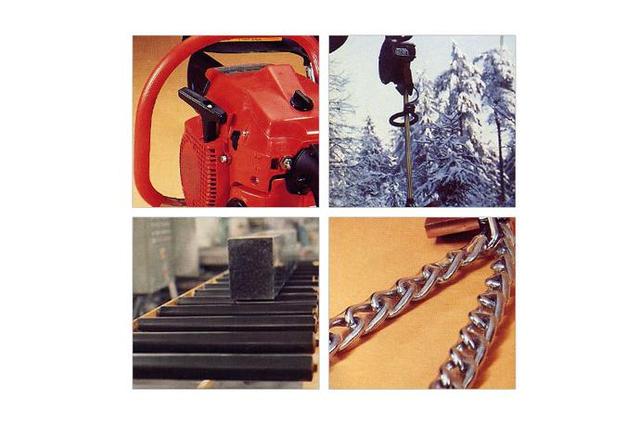

1. Application : Cost effective choice for many commercial application; electrically
insulates and protects in-line
components, disconnect terminals, and splices. Bundles wires for very
flexible light-duty
harnesses. Strain-relieves eletrical wire connections. Identifies or
color-codes wires, cables,
terminals, and componemts

2.Features and benefits :

(1) 2:1 Shrink ratio
(2) Low Shrink temperature reduces insulation time and the risk of damage to temp.sensitive components
(3) Very flexible and higher temp. rating, better thermal stability, and higher resistance to physical abuse.
(4) Various sizes and colors are available.

3. Applicable specification
UL-224 125℃ 600V VW-1 File no. : E58072
CSA C22.2 NO.198 125℃ 600V File no. : LR 103775

4. Operrating temperature range : -55℃ to 125℃
Minimum shrink temperature: 90℃



Performance

  Preperties   Test Methods Values
Phsical Unaged Tensile strength ASTM D-412 Min. 1.05kgf/㎟
Elongation UL 224 Min. 200%
Aged Tensile strength ASTM D-412
UL 224
158℃/168hrs
Min. 0.8kgf/㎟
Elongation Min. 100%
Heat shock UL-224 Pass @250℃ X 4hrs
Low temperature flexibility ASTM D-2671 No crack @-55℃×4hrs
Secant modulus UL 224 Max. 173MPa
Electrical Dielectric Voltage withstand Unaged UL 224 MIn.2500V/1mm
Aged 158℃/168hrs
Volume resistivity ASTM D 257 MIn. 1×10¹⁴Ω-cm
Chemical Copper corrosion UL 224
158℃/168hrs
No corrison
Copper stability
Elongation
No sign of degradation
Min. 100%
Flammability(VW -1) UL 224 Pass



General purpose Heat Shrinkable Tube fof Insulation, Protection and Harnessing

1. Ordering information

(1) Color : Black is standard. Other colors are available such as White,Red, Blue, Yellow, Greem,Etc.
(2) Size selection : Order the largest size that will shrink snugly over the component to be covered
(3) Standard packaging : On paper spools
(4) Marking : Marked with ACETUBE UL/CSA etc. Non marked tube is avilable upon request.
(5) Ordering descfiption : Specify product name, size and color


Standard Size

SIZE INSIDE DIAMETER WALL THICKNESS LENGTH FORM
As supplied
(Average)
After recovery
(Max.)
As supplied (Nom.) After recovery
(Min.)
1.0mm 1.2mm 0.60mm 0.20mm 0.33mm 200m Round
1.2mm 1.4mm 0.60mm 0.20mm 0.35mm 200m Round
1.5mm 2.0mm 0.75mm 0.20mm 0.35mm 200m Round
2.0mm 2.5mm 1.00mm 0.20mm 0.43mm 100m Round
2.5mm 3.0mm 1.25mm 0.25mm 0.43mm 100m Round
3.0mm 3.4mm 1.50mm 0.25mm 0.43mm 100m Round
3.5mm 3.9mm 1.75mm 0.25mm 0.43mm 100m Round
4.0mm 4.4mm 2.00mm 0.25mm 0.43mm 100m Round
4.5mm 4.9mm 2.25mm 0.25mm 0.56mm 100m Round
5.0mm 5.6mm 2.50mm 0.25mm 0.56mm 100m Round
6.0mm 6.6mm 3.00mm 0.25mm 0.56mm 100m Round
7.0mm 7.6mm 3.50mm 0.25mm 0.56mm 100m Flat
8.0mm 8.6mm 4.00mm 0.25mm 0.56mm 100m Flat
9.0mm 9.8mm 4.50mm 0.25mm 0.56mm 100m Flat
10.0mm 10.6mm 5.00mm 0.25mm 0.56mm 100m Flat
11.0mm 11.6mm 5.50mm 0.25mm 0.56mm 100m Flat
12.0mm 12.6mm 6.00mm 0.25mm 0.56mm 100m Flat
13.0mm 13.7mm 6.50mm 0.30mm 0.69mm 100m Flat
14.0mm 14.4mm 7.00mm 0.30mm 0.69mm 100m Flat
15.0mm 15.6mm 7.50mm 0.30mm 0.69mm 100m Flat
16.0mm 16.7mm 8.00mm 0.30mm 0.69mm 50m Flat
18.0mm 19.3mm 9.00mm 0.35mm 0.76mm 50m Flat
20.0mm 21.7mm 10.0mm 0.40mm 0.76mm 50m Flat
22.0mm 23.4mm 11.0mm 0.40mm 0.76mm 50m Flat
25.0mm 25.5mm 12.5mm 0.40mm 0.86mm 50m Flat
28.0mm 29.0mm 14.0mm 0.45mm 0.86mm 50m Flat
30.0mm 31.0mm 15.0mm 0.50mm 0.86mm 50m Flat
38.0mm 39.0mm 19.0mm 0.50mm 0.97mm 50m Flat
50.0mm 51.0mm 25.0mm 0.20mm 0.97mm 50m Flat
3/64inch 1.4mm 0.60mm 0.20mm 0.35mm 200m Round
1/16inch 2.0mm 0.75mm 0.20mm 0.43mm 200m Round
3/32inch 2.5mm 1.00mm 0.25mm 0.43mm 100m Round
1/8inch 3.4mm 1.50mm 0.25mm 0.43mm 100m Round
3/16inch 4.9mm 2.25mm 0.25mm 0.56mm 100m Round
1/4inch 6.6mm 3.00mm 0.25mm 0.56mm 100m Round
3/8inch 9.8mm 4.50mm 0.25mm 0.56mm 100m Flat
1/2inch 12.5mm 6.00mm 0.25mm 0.56mm 100m Flat
3/4inch 19.3mm 9.00mm 0.35mm 0.76mm 50m Flat
1inch 25.5mm 12.5mm 0.40mm 0.86mm 50m Flat
11/2inch 39.0mm 19.0mm 0.50mm 0.97mm 50m Flat
2inch 51.0mm 25.0mm 0.50mm 0.97mm 50m Flat

* Additional non-standard sizes available upon request
* Wall thickness will be less if tubing recovery is restricted during shrinkage
