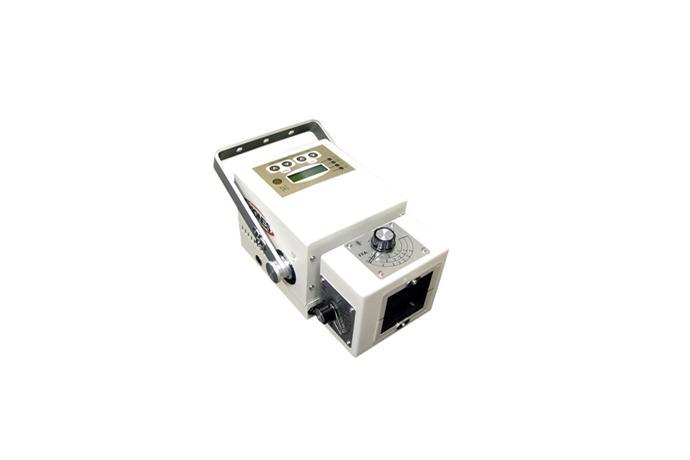

제품명 Portable X-ray Units
모델명 TW-102
시리즈 X-ray Products
카탈로그
제품소개

TECHNICAL SPECIFICATIONS COMPARISON
PORTABLE X-RAY UNITS



◎ Specification

Type

High Frequency

Max. Tube Voltage / Current

100kV / 20mA

Range

40-100kV / 0.4-50mAs

Power Consumption

2.8kVA

Input Power

AC 110 / 220V

Collimator Lamp

12V 100W

Tube Focal Spot

1.2mm

Phase, Frequency

Single phase, 50/60Hz

Size

230(W)×310(D)×175(H)

Weight

11 kg



◎ Feature

- Carring case for each : Included
- Mobile Stand : Option
