자재 연결테이프

모델명

시리즈

SMT 자재연결


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


031-354-6801

제품 상세 설명

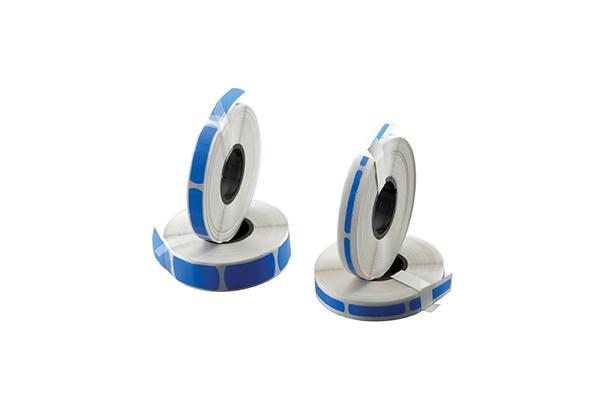

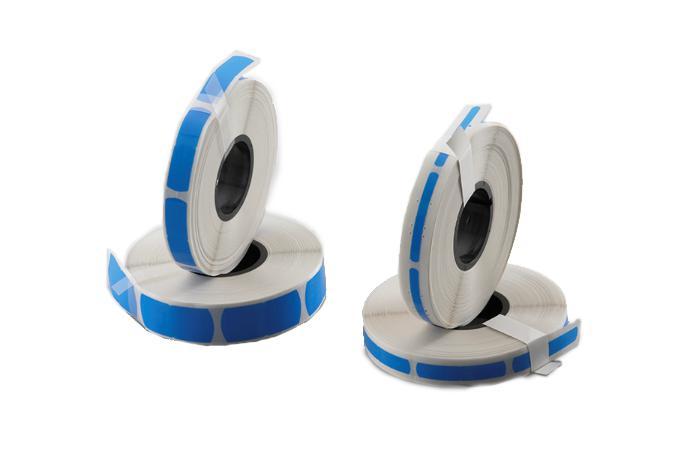

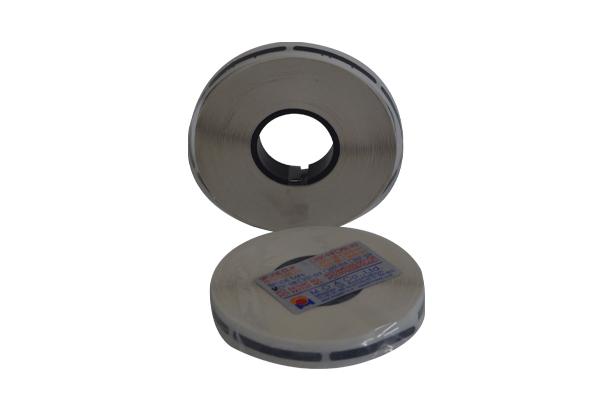

Splice(Joint) Tape (EST-S08B,S08~S24)

Product Description

1. Usage : To connect cover tape of Paper or Emboss Carrier Tape.

2. Feature : Consumables of easily detachable sticker type.

      Super powerful adhesiveness (two or three times stronger than existing product).

      When it can be used by our splice device designed specially & patented, it is far more ideal & effective.


3. Kinds :

1) EST-S08B (5mm width) : To connect single carrier tape with 8mm width for cassette.

2) EST-S08 (5mm width) : To connect single carrier tape with 8mm width for cassette.

3) EST-S12 (9mm width) : To connect single carrier tape with 12mm width for cassette.

4) EST-S16 (13mm width) : To connect single carrier tape with 16mm width for cassette.

5) EST-S24 (21mm width) : To connect double carrier tape with 24mm width for cassette.

   * You can connect wide double carrier tape with 32 mm, 44 mm, 56mm, 72mm width for cassette by using the above 4 kinds of splice tape. (Attach 2 or 3 pcs to suit with carrier tape width.)

   * Dual attachment is allowed by the interchangeable splice tape with 5mm, 9mm, 13mm width.


4. Quantity : Min. 800 pcs or more per roll.
