3 Roll Plate Bending Machine

모델명

시리즈

Plate Bending Machine


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


+39-39-0172-691327

제품 상세 설명

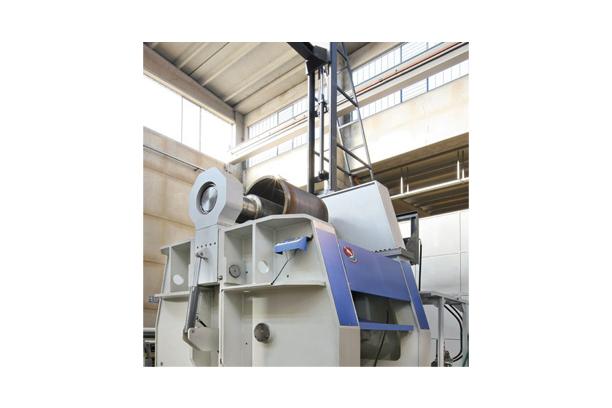

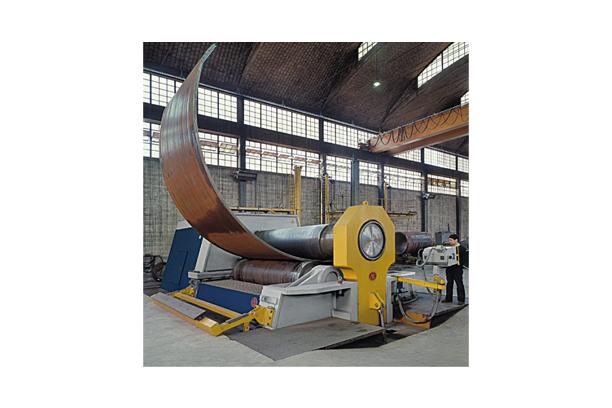

Our line of 3 roll bending machines offers many advantages. They are reliable and tested hydraulic bending machines, with three driving rollers with hydraulic pinching that guarantee a precise and constant drag of the material. Easy to use and precise in the execution of shell rings, it boasts a unique versatility thanks to the exclusive MG planetary geometry.

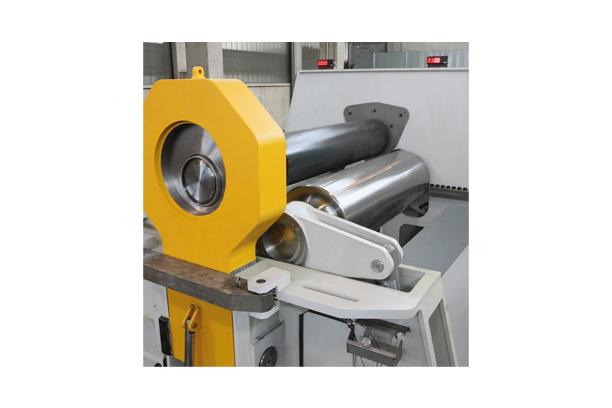

Reliable and productive, the parallelism of the side rolls is controlled by a torsion bar system that connects both the ends of the side roll, eliminating the disadvantage of delicate and unreliable encoders. The rolls are driven by hydraulic motors and high efficiency planetary gearboxes, coupled directly on the rolls. The MG solution, with rolls assembled on sealed bearings and without secondary components, reduces the dispersions of the applied force generated by the frictions of the various components. It guarantees higher reliability, greater absorption of loads and increases the inclination capacity of the side rolls, resulting versatile in conical bending.


The side rolls move up and down on planetary swing guides: a perfect geometry that eliminates the disadvantages of linear gears. This allows us to have hydraulic pumps with lower flow motors, improving energy savings.


In the GE version both the movement and the rolls parallelism are electronic driven.

Two proportional electro-valves, two transducers and a dedicated system grant precision, stability and repeatability over the time, and under any temperature and condition


In Its GL version, on the other hand, the side rolls move on a linear oblique channel reducing the space between the rolls. The point of contact of the side roll with the sheet metal takes place in a shorter space thanks to a narrower center distance; this allows working with very small diameters reducing further the flat edges.  On this model, the parallelism of the rolls is electronic; two proportional electro-valves, two transducers with digital reading and a dedicated electronic control that guarantees precision and repeatability of each roll positioning over time, independent of temperature or any mechanical wearing, ensuring always-maximum precision.
