제품명 Screw Clamp (Screw Clamp for Angle)
모델명 NPC-FS
시리즈 Clamps
카탈로그
제품소개

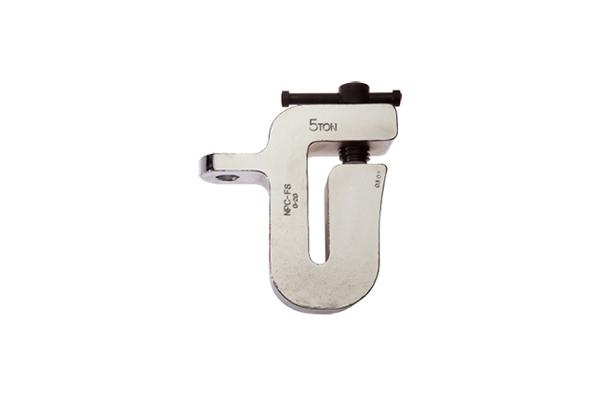

NPC-FS

WLL(TON)Jaw OpeningA1BCD1D2EFØGIØJKWeight(kg)
50-25281782545062R122483024387016.9



Features

- The NPC-FJ and the NPC-FS are clamps used to prevent accidents caused by the widening, slipping or breakage  of the hook because the
   load is concentrated at the end of the hook when hanging the hook of a lever block and  a chain block directly on a work piece(bulb plate).
- The NPC-FJ has the jaw opening specially designed for bulb plates which are used as the frame of the outer  plating and the inner plating in
   shipbuilding. It is a safe and convenient clamp that can do horizontal lifting due to  the swivel jaw at the opposite side of the screw.
- The NPC-FS is a clamp designed to use with the wide flange of hte angle.


How to use

Insert the bulb of a bulb plate or the flange of an angle into the clamp's jaw opening and then completely tighten the screw.


Warnings

- Do not exceed the rated capacity specified on the clamp.
- Use a work piece only which falls within the jaw opening range specified in the instruction manual.
- Never use other materials except bulb plates with the NPC-FJ.
- If the load is placed laterally, not straightly, on the eye hoel, use only 1/2 of the rated capacity.
- Never lift work pieces with NPC-FS.
