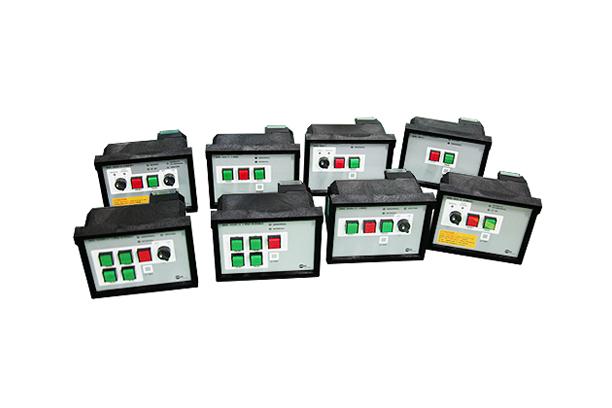

Motor Controller SMC-500 Series

Type Approval : ABS, BV, GL, KR, LR

2/3 stand-by start

2 speed reversible start

2 speed start

reversible start

constant start (auto/manual, remote/local, y-d start)

SMC-500 SERIES의 MOTOR CONTROLLER는 모터 운전이 필요한 곳에 간단히 사용할 수 있도록 개발된 복합적인 고기능의 제품으로써, 다양한 국제규격을 만족하고 있으며 표준화된 회로를 채택하였고 제어회로는 엄선된 국제규격의 부품으로 구성하였습니다.

특장으로는 조선, 플랜트, 발전, 철강, 석유화학, 수자원 관리 등 열악한 환경에 적합하도록 외장재는 절연강도가 높고 가벼우며, 충격 및 내화학성이 강한 난연성의 PC 재질로 되어 어떠한 조건의 환경에도 쉽고, 안전하게 적용할 수 있도록 IP65로 구성하였습니다.

ORDERING INFORMATION

ELECTRICAL AND MECHANICAL SPECIFICATIONS

INPUT POWER SOURCE	RATING	AC 22V 50 / 60Hz
	VARIATION	CONTINUOUS :AC 22V ±10%	MAXIMUM : AC 22V ±20%
	SURGE TRANSIENT	2kV 50uVs line / earth : 1kV 50uVs line / line [IEC 1000-4-5/1995]
	POWER CONSUMPTION	20VA [MAX.]---Inside Control Fuse : 250Vac 2A [miniature glass tube]
TIMER SPECIFICATION Controlled by digital circuit]	ACCURACY [Ta : ambient temperature]	less than ± 1% [-10℃ < Ta < +45℃] less than ± 5% [-20℃ < Ta < -10℃, +45℃ < Ta < +55℃]
RATING OF PUSH BUTTON FOR START, STOP		250Vac, 3A [p.f=0.4], [-25℃ < Ta < +55℃] -Life Expectancy:Mechanical life - 1,000,000 cycles Electrical life - 100,000 cycles
RATING OF SELECTOR SWITCH FOR AUTO / MANUAL, HEATER		250Vac, 3A [p.f=0.4], [-25℃ < Ta < +55℃] - Life Expectancy : Mechanical life 250,000 cycles Electrical life - 100,000 cycles
RATING OF EXTERNAL T.B FOR CONNECTION		600V / 15A[-30℃ < Ta < +105℃], 1000V / 9A [-30℃ < Ta < + 105℃]
RATING OF CONTROL RELAY FOR ELECTROMAGNETIC CONTACTOR	APPLICATION CIRCUIT	​
	LIFE EXPECTANCY	Mechanical life - 30,000,000 cycles / Electrical life - 100,000 cycles
SIGNAL OUTPUT [250Vac 0.3A : p.f=0.4]		Stand-by, stand-by started [5sec.], Overload, Low pressure, Power fail, Abnormal stop, CPU fail
ELECTRICAL INSULATION RESISTANCE		Above 200㏁ between live part and enclosure
DIELECTRIC STRENGTH		2.5kVac, 1min between 88 control line [P1, P2, P3,P4, P5] and enclosure
